We are Manufacturing plasma consumables and export more than twenty countries. our price and quality have competitivity.
Please send us the parts you need and we will send price back to you .
PMX45,PMX1250,PMX1650,PMX45/65/85/105/PMX125/PRO200,HSD130 ,Thermal dynamic
Trafimet : S45, S75, S105, S125, A81, A101, A141, A151, CB50 , CB70, CB150,LT151, LT81, CP160

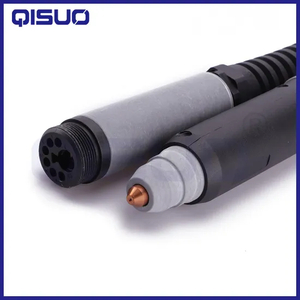

ESAB : Spare Parts ,Gas Cutting Nozzle ,PT80 ,PT36 ,PT31
AJAN,Lincoln ,LC125,LC105, HC-1003 , YY160
YGX300, YGX100,YGX200
YK300,YK330,YK200H,YK100H,YK130
Kjellberg,P80,AG60,PT31,AG100 ,SG51,JG60,JG100,SG55,trafimet serise cutting torch and part.
| Technical | Data |
| Current | 140 Amp |
| Duty Cycle | 60% |
| Gas | AIR |
| Gas Pressure | 4.5-5.0 Bar |
| Gas Flow | 220LPM |
| Ignition | HF |
| Post Flow | 140 sec.recommended |
| Standard Length | 6M |

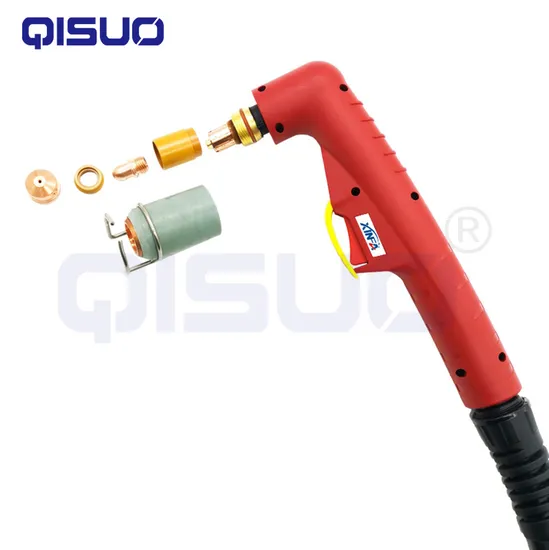

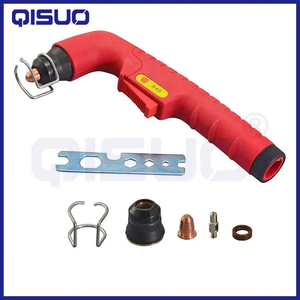

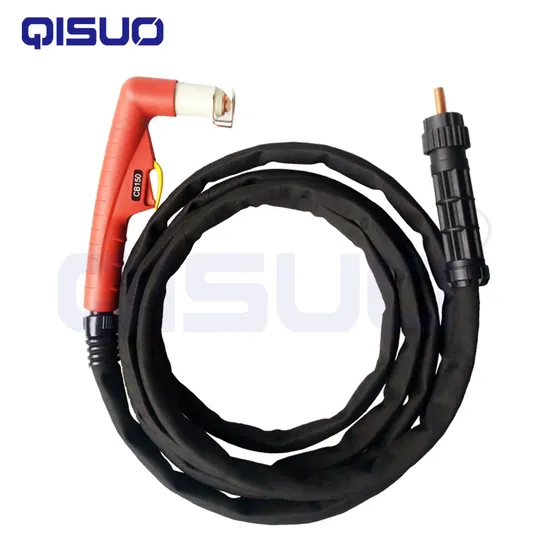

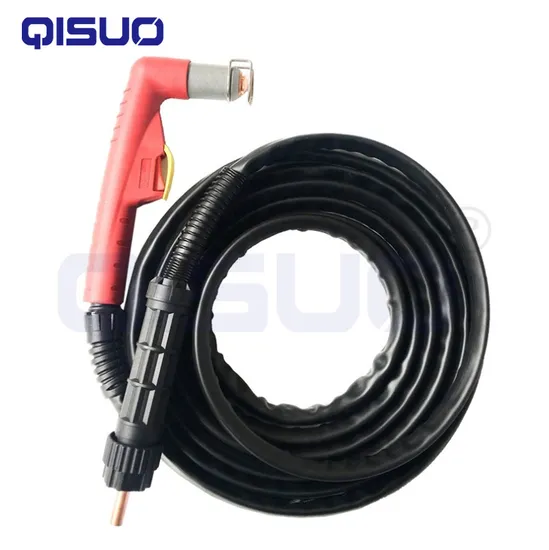

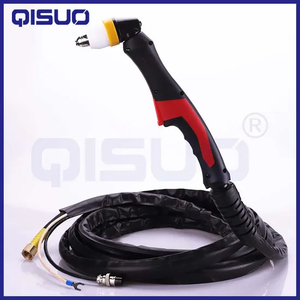

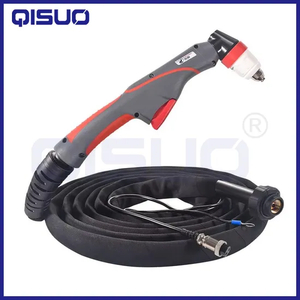

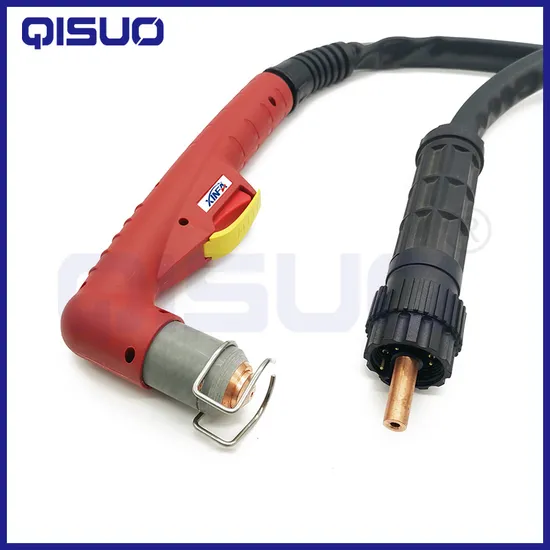

HAND TORCH
| Ref Code(6m) | Ref Code(12m) | Description |
| QS PA1502 | QS PA1503 | Plasma cutting torch A141 1/4G |
| QS PA1506 | QS PA1507 | Plasma cutting torch A141 3/8G |
| QS PA1500 | QS PA1501 | Plasma cutting torch A141 M14x1 |
| QS PA1509 | QS PA1510 | Plasma cutting torch A141 M16x1.5 |
| QS PA1504 | QS PA1505 | Plasma cutting torch A141 central adaptor |
MACHINE TORCH
| Ref Code(6m) | Ref Code(12m) | Description |
| QS PA0105 | QS PA0109 | Plasma cutting auto torch A141 3/8G |
| QS PA0108 | QS PA0106 | Plasma cutting auto torch A141 1/4G |
| QS PA0103 | QS PA0104 | Plasma cutting auto torch A141 M14x1 |
| QS PA0142 | QS PA0143 | Plasma cutting auto torch A141 central adaptor |
| QS PA0145 | QS PA0146 | Plasma cutting auto torch A141 M16x1.5 |

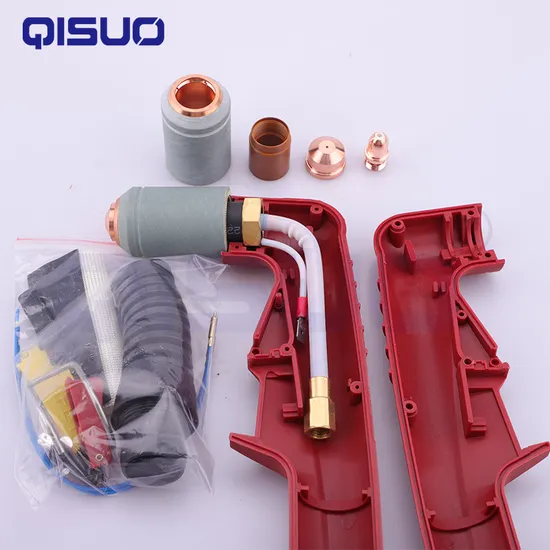

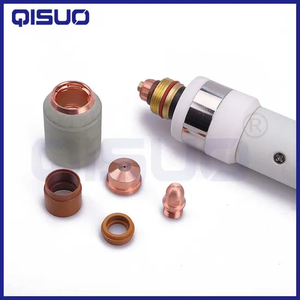

| Position | Ref Code | Description |
| 1 | QS CV0013 | Gouging spacer/A141-150 |
| 2 | QS CV0014 | Four pointed spacer/A100-150 |
| 3 | QS CV0012 | Double pointed spacer/A100-150 |
| 4 | QS CV0011 | Spacer spring/A100-150 |
| 5 | QS PC0102 | Outsid nozzie A141 |
| 6 | QS CV0039 | Four point crown shield with insulator /A101-141 |
| 7 | QS CV0023 | Spacer for contact cutting/A101-141 |
| 8 | QS PC0131 | Outsid nozzie A141-151 |
| 9 | | Tip |
| 9.1 | QS PD0101-11 | Tip φ1.1mm A101-141 |
| 9.2 | QS PD0101-14 | Tip φ1.4mm A101-141 |
| 9.3 | QS PD0101-17 | Tip φ1.7mm A101-141 |
| 9.4 | QS PD0101-19 | Tip φ 1.9mm A101-141 |
| 10 | QS PE0101 | Diffuser A101-141 |
| 11 | QS PR0101 | Extended Plasma A101-141 |
| 12 | | Air tube/A141-151 |
| 13 | QS CV0044 | Locking nut |
| 14 | QS CV0008 | Shield cap attachment/A100-151 |
| 15 | QS CV0009 | Long contact cutting attachment/A100-151 |
| 16 | | Tip |
| 16.1 | QS PD0117-14 | Extended tip φ 1.4mm/A101-151 |
| 16.2 | QS PD0117-17 | Extended tip φ1.7mm/A101-151 |
| 16.3 | QS PD0117-19 | Extended tip φ1.9mm/A101-151 |
| 16.4 | QS PD0111 | Extended tip 50A/A101-151 |
| 17 | QS PE0103 | Diffuser A151 |
| 18 | QS PR0116 | Extended electrode Plasma A101 |
| 19 | | Extended air tube/A150 |
| 20 | QS PF0155 | Plasma torch head A141 |
| 20a | QS EA0131 | Oring φ18.77x1.78mm in silicon |
| 20b | QS PE4002 | Front insulator/A141-151 |

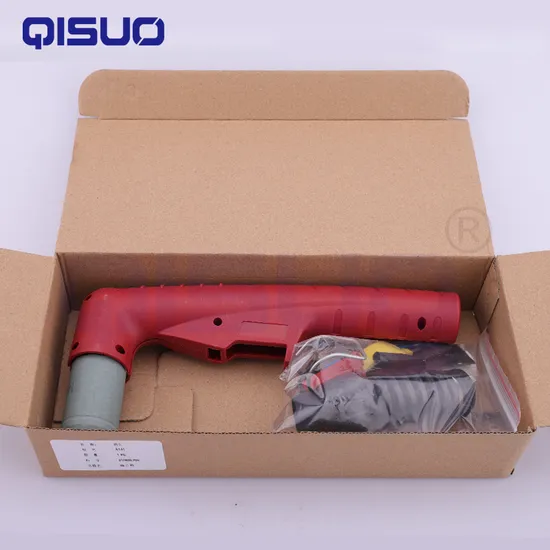

| 21 | QS TP0085 | Plasma handle manual/A Series/Red |
| 22 | QS BW0277 | Protection part/Plasma/Yellow |
| 23 | QS BX0020 | Trigger |
| 24 | QS BW0349 | Plasma joint/big/new type |
| 24.1 | | Cable assembly |
| 24.2 | QS PH0146 | Cable assembly/A141-151/6m 1/4G |
| 24.3 | QS PH0148 | Cable assembly/A141-151/6m 3/8G |
| 24.4 | QS PH0142 | Cable assembly/A141-151/6m M14x1 |
| 24.5 | QS PH0150 | Cable assembly/A141-151/6m M16x1.5 |
| 25 | QS PH0144 | Cable assembly/A141-151/6m central adaptor |
| 26 | QS MT1001 | Spanner for Plasma |
| 26a | QS PF0102 | Plasma torch head A141 |
| 27 | QS TP0061 | Fiber glass position tube/A141-M |
| 28 | | Cable assembly A141-M |
| 28.1 | QS PH0122 | Cable assembly A141-151/6m 1/8G |
| 28.2 | QS FA5132 | Connecting adaptor 1/8G-1/4G |
| 28.3 | QS FA5131 | Connecting adaptor 1/8G-3/8G |
| 28.4 | QS FA5133 | Connecting adaptor 1/8G-M14x1 |
| 28.5 | QS FA5134 | Connecting adaptor 1/8G-M16x1.5 |
| 29 | QS FY0023 | Central adaptor torch side Plasma 5 pins |
| 30 | | Circle cutting attachment/A101-151 |
Changzhou Qi Suo Welding Equipment Co., Ltd. is a modern enterpriseintegratingdevelopment, production and sales. Founded in 2012. The company hasstrong technicaforce, strong production capacity, complete testing equipment,specializing in the productionof plasma cutting gun, MlG & TlG welding gun, andvarious welding accessories.
Advancedtechnology and excellent performance. With perfect quality system and excellent after-sales service, the company constantlydevelops the domestic market.
We have exported more than 100countries like USA.Mexico.
Canada,Spain,Russia,Singapore, Thailand, India etc.
Whether selecting RTS products from our catalog or seeking engineering assistanceforyour application, you can discuss your purchasing needs with our customer ServiceCenterand we will provide you with the most professional service.

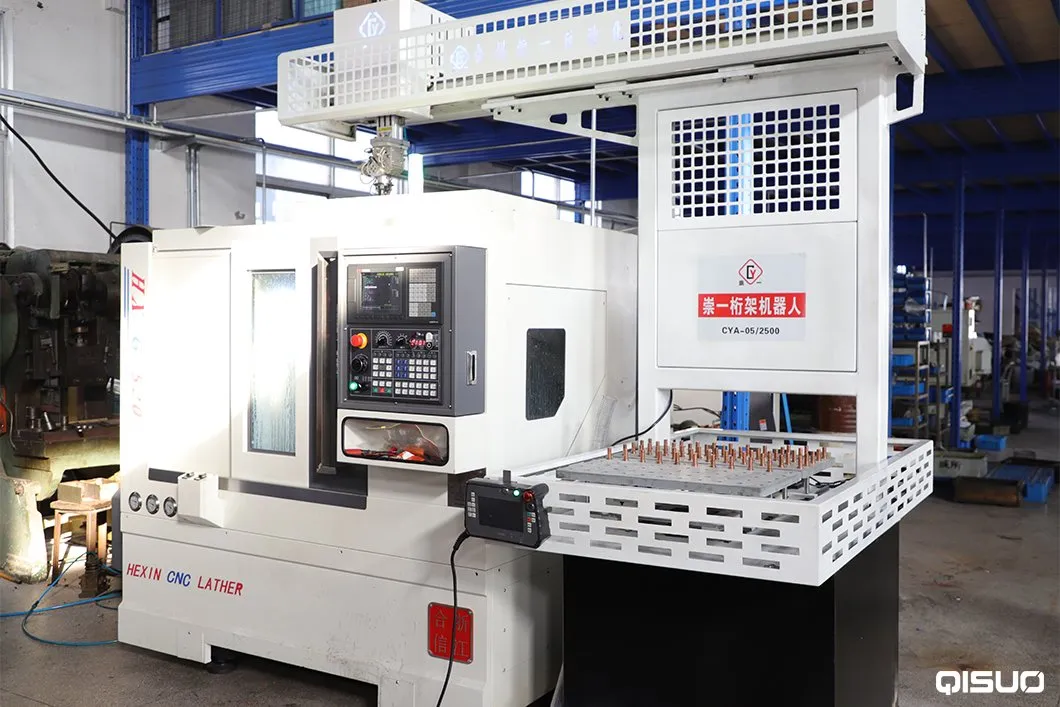

ADVANCED CNC EQUIPMENT Our company has a large number of advanced CNC equipment. What is shown in the picture is the fully automatic truss robot, which can realize the automatic feeding and taking of materials with high efficiency and stable quality.

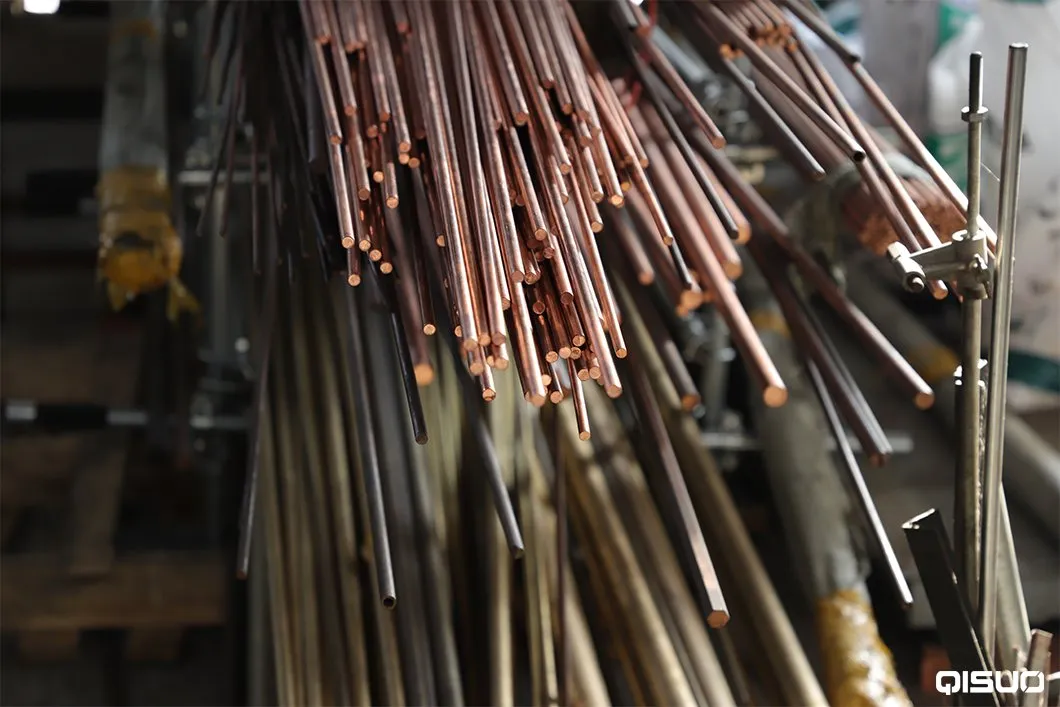

LARGE INVENTORY OF COPPER MATERIALS Our company has a large amount of copper material inventory, to prepare for your order, to ensure that you can ship quickly.

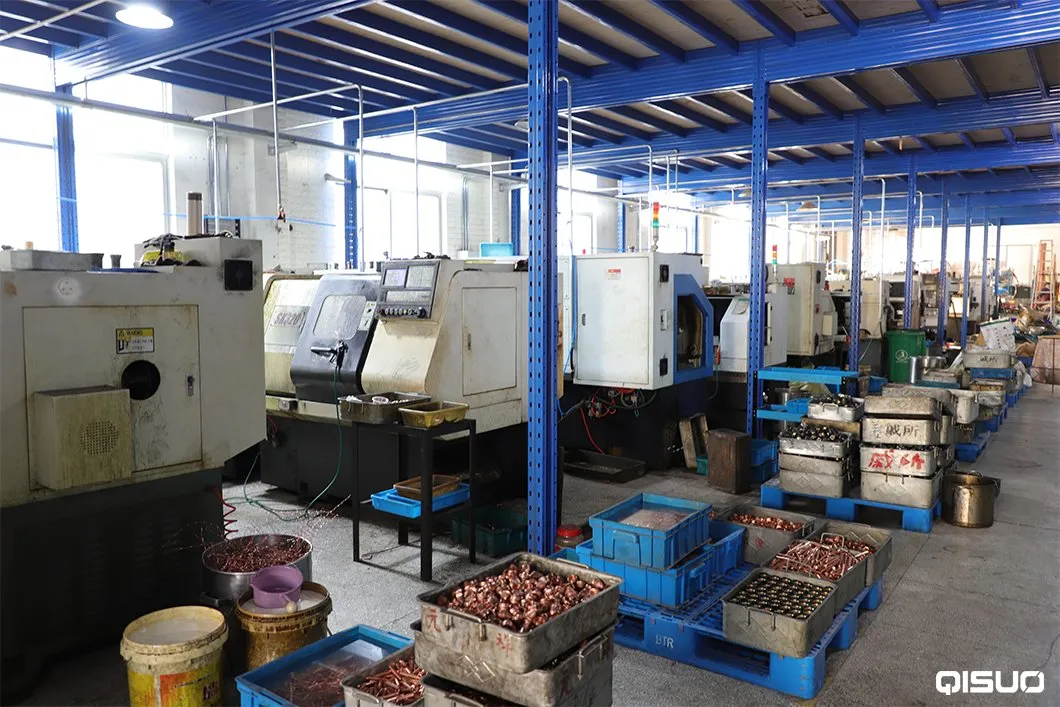

MULTIPLE CNC MACHINES GUARANTEE ORDER QUANTITY Our company also has many CNC simultaneous operations that can produce large volume orders. Skilled operators and technical personnel as a guarantee.

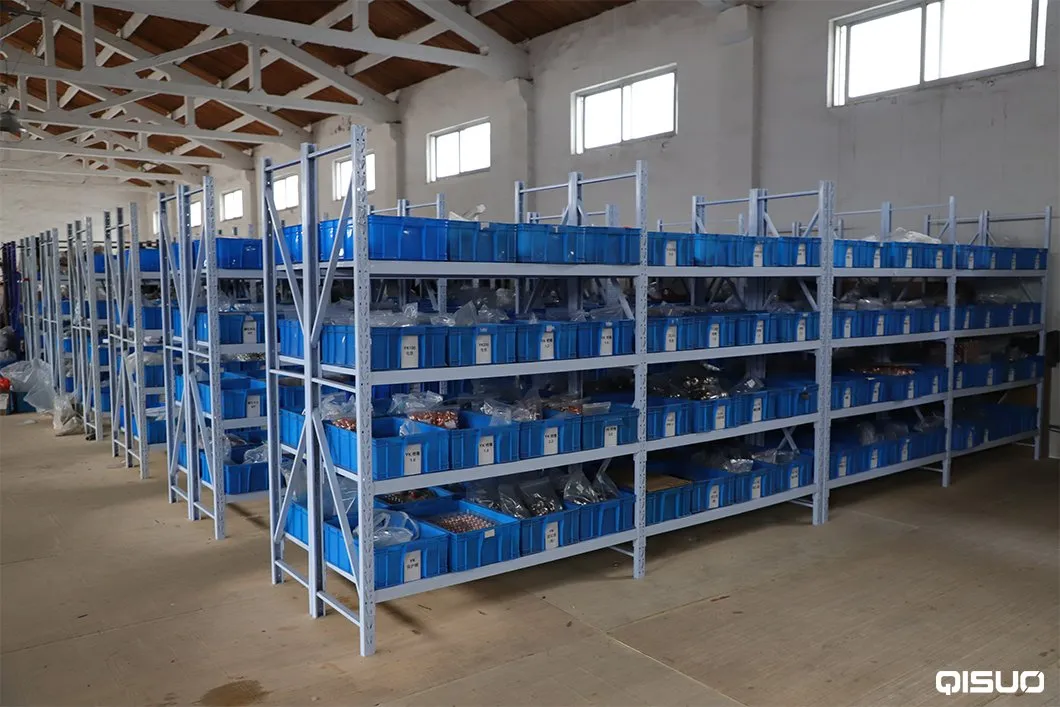

HAVE A LARGE STOCK OF SOME CONVENTIONAL PARTS This is one of the warehouses of our company. We have a large stock of some conventional parts, such as P80, A141 and so on. You are welcome to visit.
Q:CAN I HAVE A SAMPLE FOR TESTING?
A:Yes, we can support sample, The sample will be charged reasonably according tothenegotiation between us.
Q:CAN IADD MY LOGO ON THE BOXES/CARTONS?
A:Yes, OEM and ODM are available from us.
Q:CAN ISEND SAMPLES AND HAVE THEM CUSTOMIZED?
A:Of course, we can make the parts you need according to the sample 1:1 reduction.
Q:DO YOU SELL ANY ORIGINAL PARTS?
A:Yes, welcome to inquire, we will sell some original parts, but also sell non-originalparts.The price of non-original packaging is relatively low.
Q:CAN I HAVE A VISIT TO YOUR FACTORY BEFORE THE ORDER?
A:Sure, welcome your visit to our factory.
