| Technical | Data |
| Current | 30Amp |
| Duty Cycle | 60% |
| Gas | AIR |
| Gas Pressure | 4.5-5.5 Bar |
| Gas Flow | 220LPM |
| Ignition | HF |
| Post Flow | 80 sec.recommended |
| Standard Length | 4M |
HAND TORCH
| Ref Code | Description |
| 44P3104101 | Plasma cutting torch /PT31/4m /M16x1.5 |

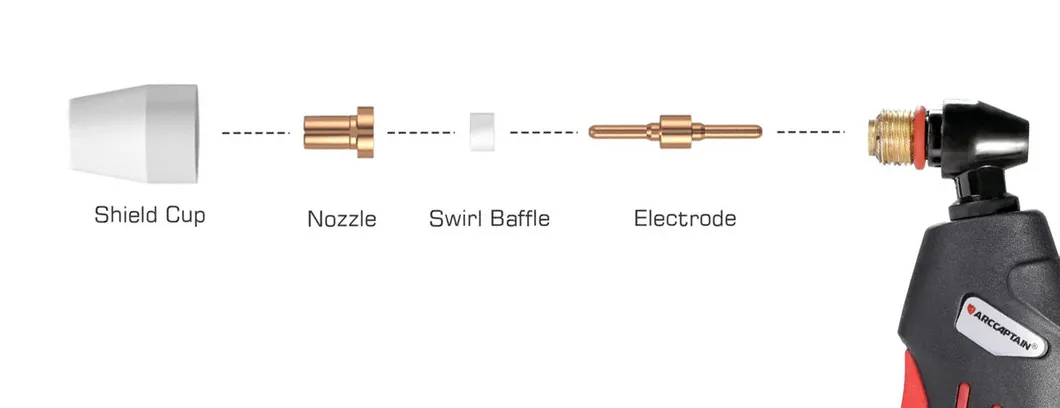

| Position | Ref Code | Description |

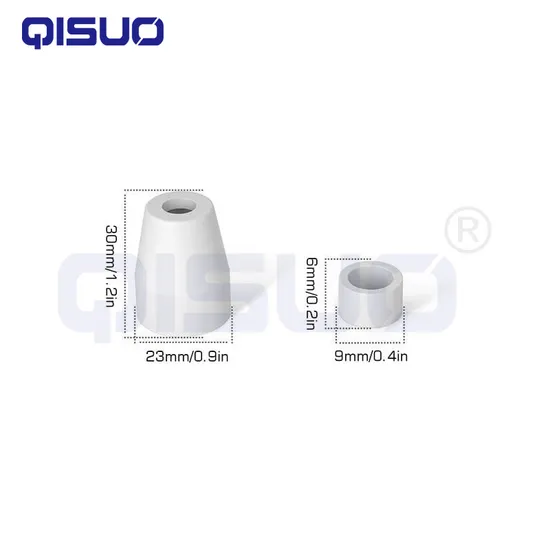

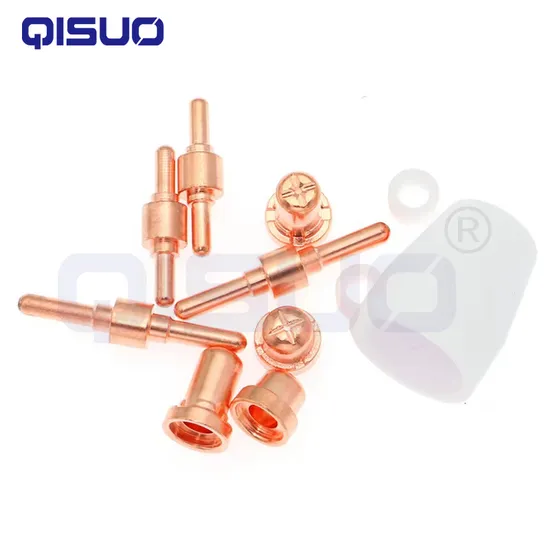

| 1 | BW18204 | Shield Cup PT-31 |

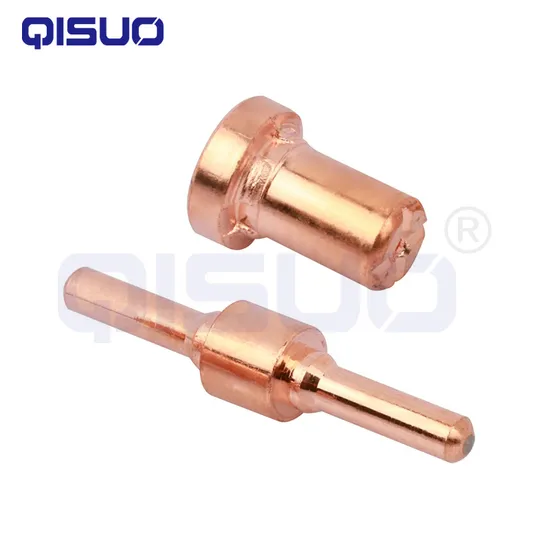

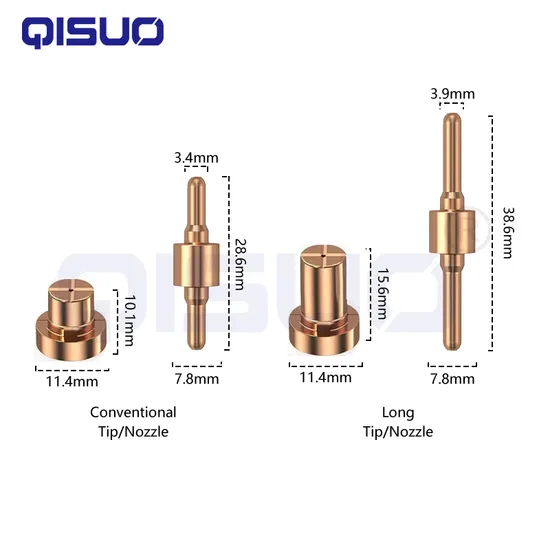

| 2 | BW18866 | Tip PT-31 |
| | | Long Tip PT-31 |
| 3 | BW18785 | Difusser PT-31 |
| 4 | BW18205 | Electorde PT-31 |
| | | Long Electorde PT-31 |
| 5 | BW20072 | Plasma torch head PT-31 |
| 6 | | O-Ring |
| 7 | BX0020 | Switch/Plasma |
| 8 | TP0075 | Handle |
| 9 | | screw |
| 10 | PH0168 | Cable assembly |
| 10.1 | | Cable assembly /PT31/4m |
| 11 | BX0252 | Connector 2 Holes |
Changzhou Qi Suo Welding Equipment Co., Ltd. is a modern enterpriseintegratingdevelopment, production and sales. Founded in 2012. The company hasstrong technicaforce, strong production capacity, complete testing equipment,specializing in the productionof plasma cutting gun, MlG & TlG welding gun, andvarious welding accessories.
Advancedtechnology and excellent performance. With perfect quality system and excellent after-sales service, the company constantlydevelops the domestic market.
We have exported more than 100countries like USA.Mexico.
Canada,Spain,Russia,Singapore, Thailand, India etc.
Whether selecting RTS products from our catalog or seeking engineering assistanceforyour application, you can discuss your purchasing needs with our customer ServiceCenterand we will provide you with the most professional service.

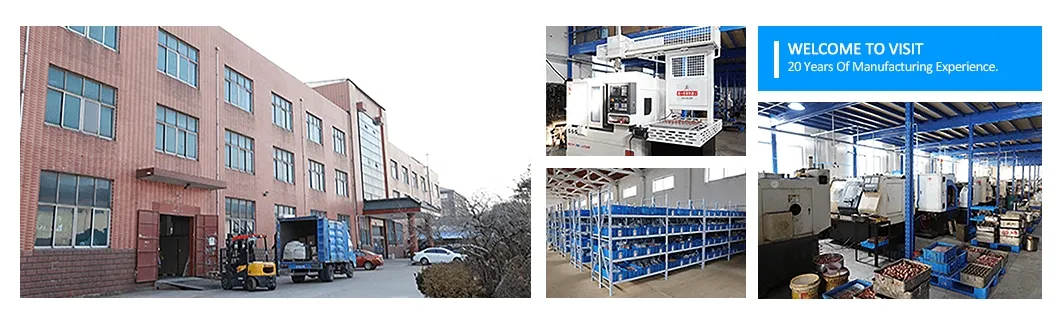

ADVANCED CNC EQUIPMENT

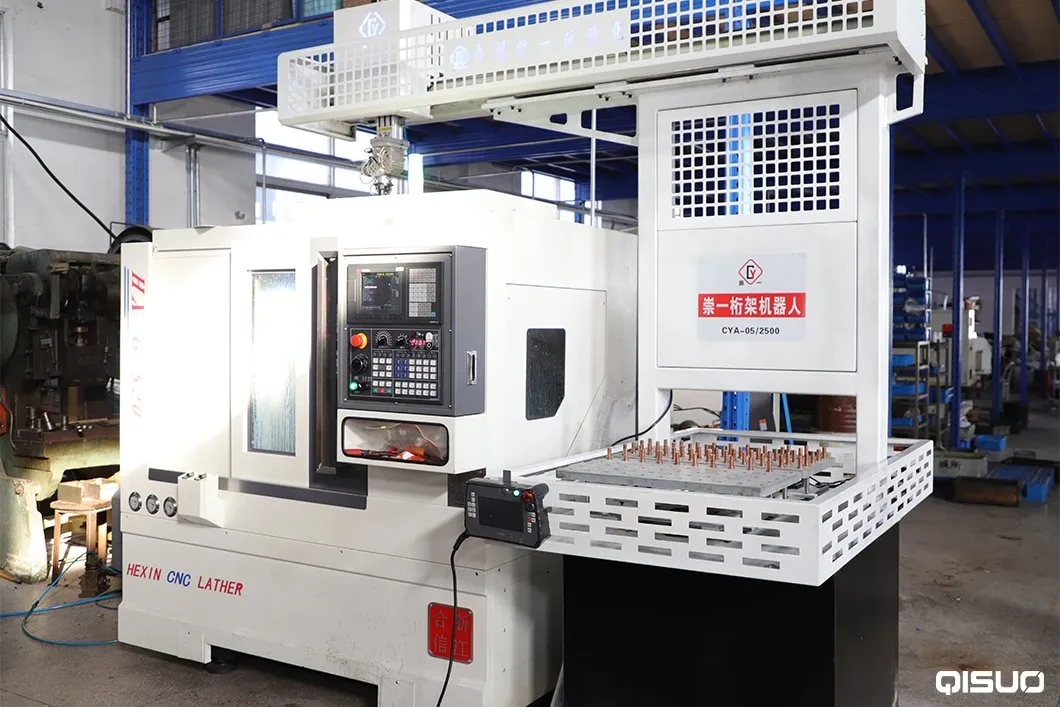

Our company has a large number of advanced CNC equipment. What is shown in the picture is the fully automatic truss robot, which can realize the automatic feeding and taking of materials with high efficiency and stable quality.

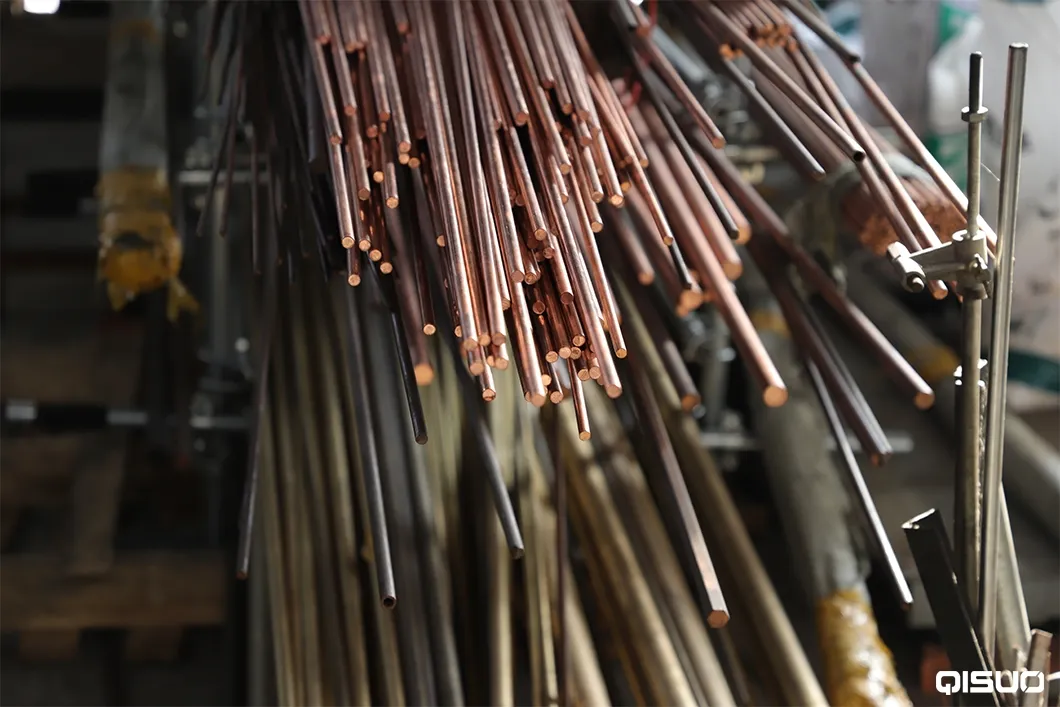

LARGE INVENTORY OF COPPER MATERIALS
Our company has a large amount of copper material inventory, to prepare for your order, to ensure that you can ship quickly.

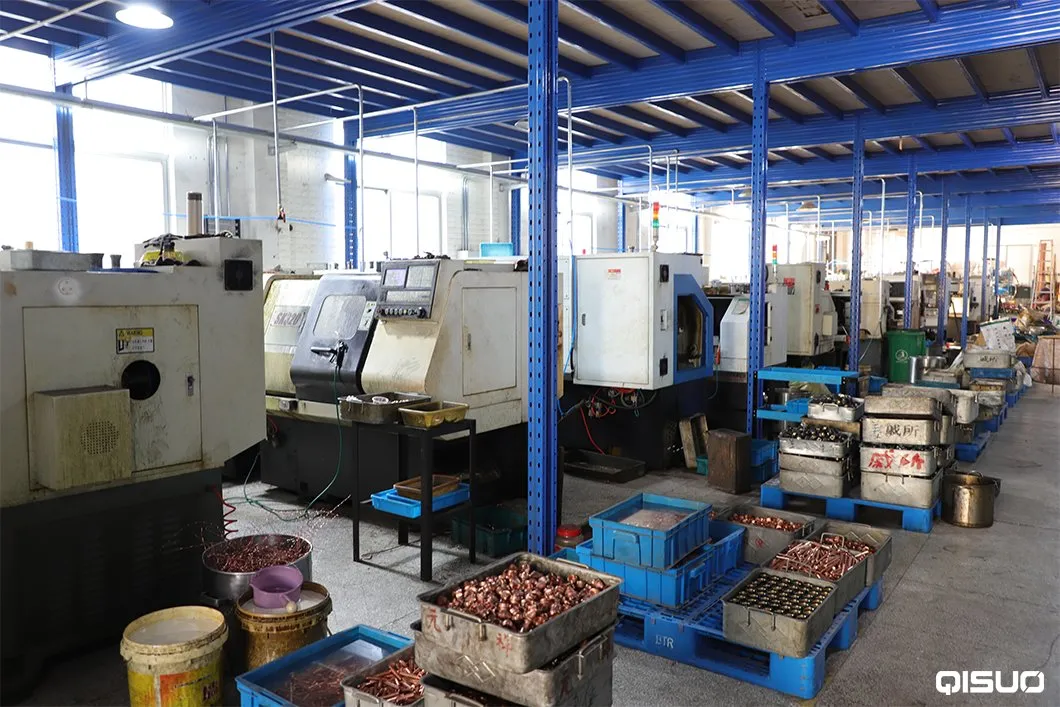

MULTIPLE CNC MACHINES GUARANTEE ORDER QUANTITY
Our company also has many CNC simultaneous operations that can produce large volume orders. Skilled operators and technical personnel as a guarantee.

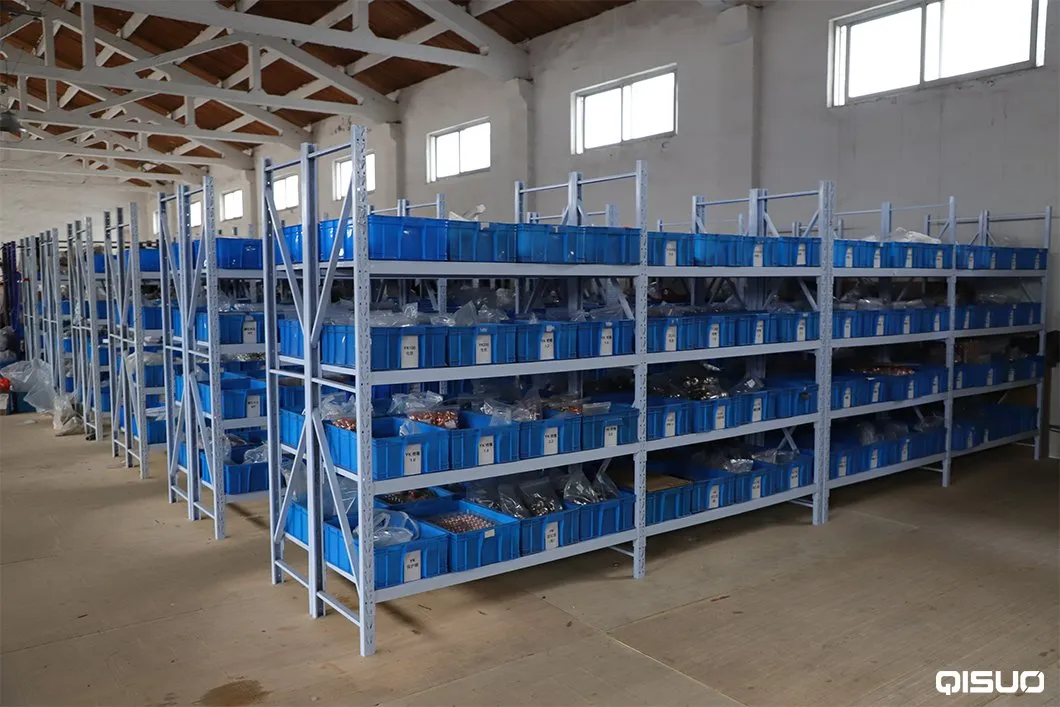

HAVE A LARGE STOCK OF SOME CONVENTIONAL PARTS
This is one of the warehouses of our company. We have a large stock of some conventional parts, such as P80, A141 and so on. You are welcome to visit.
Q:CAN I HAVE A SAMPLE FOR TESTING?
A:Yes, we can support sample, The sample will be charged reasonably according tothenegotiation between us.
Q:CAN IADD MY LOGO ON THE BOXES/CARTONS?
A:Yes, OEM and ODM are available from us.
Q:CAN ISEND SAMPLES AND HAVE THEM CUSTOMIZED?
A:Of course, we can make the parts you need according to the sample 1:1 reduction.
Q:DO YOU SELL ANY ORIGINAL PARTS?
A:Yes, welcome to inquire, we will sell some original parts, but also sell non-originalparts.The price of non-original packaging is relatively low.
Q:CAN I HAVE A VISIT TO YOUR FACTORY BEFORE THE ORDER?
A:Sure, welcome your visit to our factory.
