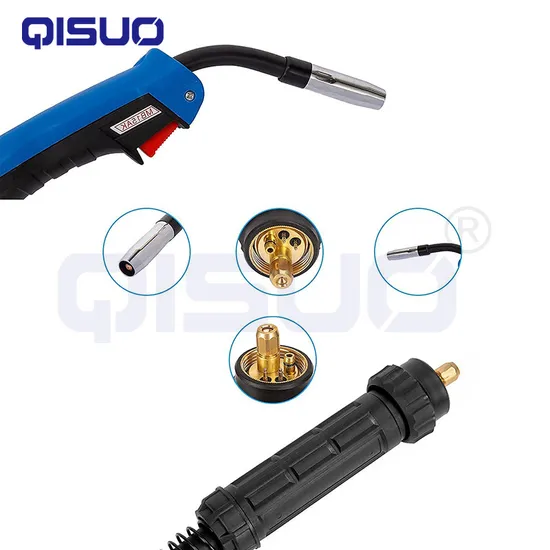

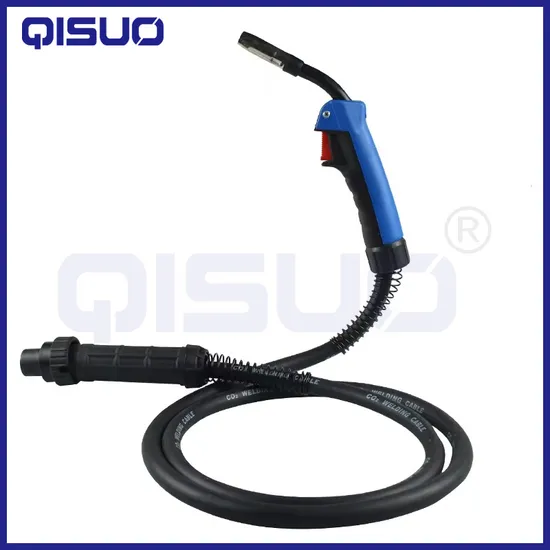

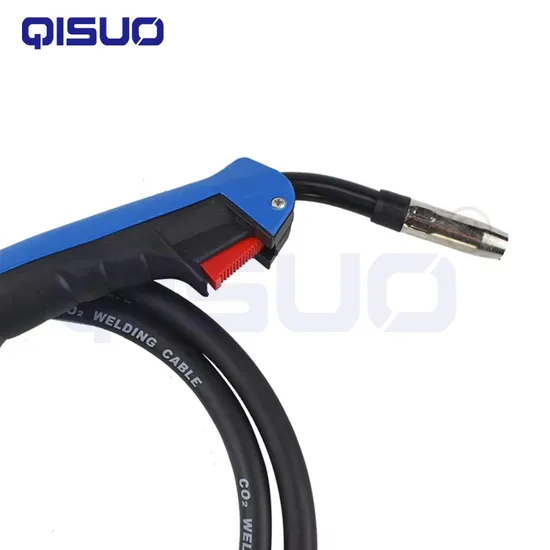

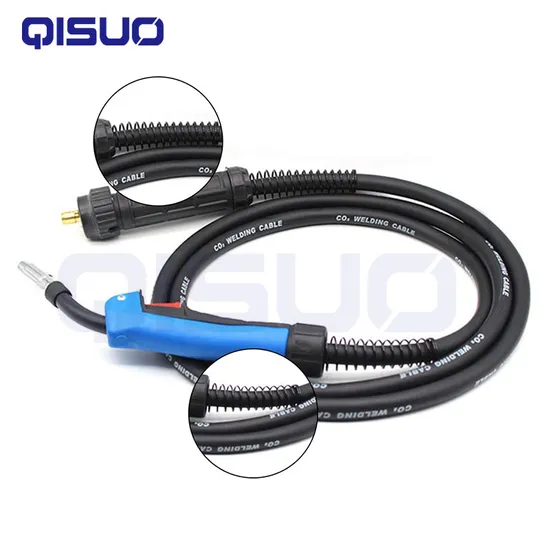

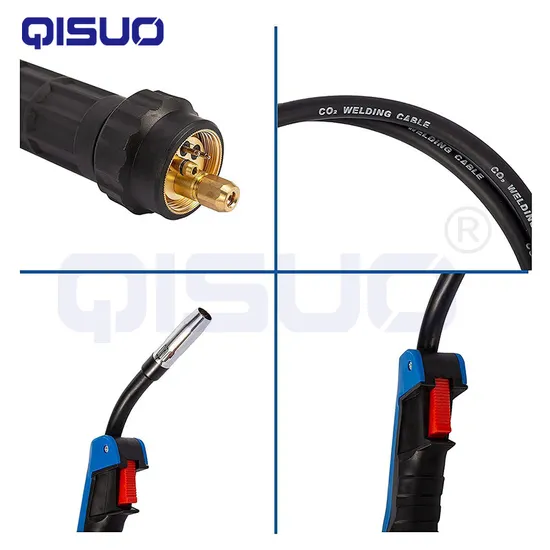

15ak MIG Mag Welding Torch Gun with Europe Connector

Customization:	Available
Maximum Welding Thickness:	Consult Us
Application:	Machinery

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

15AK Welding Torch

Combustible Gas

Air

Flame Number

Single Flame

Size

Consult Us

Type

Consult Us

Transport Package

Carton

Specification

42*34*7

Trademark

15AK

Origin

China

HS Code

8468900000

Production Capacity

50000

Packaging & Delivery

Package Size

42.00cm * 34.00cm * 7.00cm

Package Gross Weight

5.000kg

Product Description

We are Manufacturing plasma consumables and export more than twenty countries. our price and quality have competitivity.
Please send us the parts you need and we will send price back to you .
PMX45,PMX1250,PMX1650,PMX45/65/85/105/PMX125/PRO200,HSD130 ,Thermal dynamic
Trafimet : S45, S75, S105, S125, A81, A101, A141, A151, CB50 , CB70, CB150,LT151, LT81, CP160
ESAB : Spare Parts ,Gas Cutting Nozzle ,PT80 ,PT36 ,PT31
AJAN,Lincoln ,LC125,LC105, HC-1003 , YY160
YGX300, YGX100,YGX200
YK300,YK330,YK200H,YK100H,YK130
Kjellberg,P80,AG60,PT31,AG100 ,SG51,JG60,JG100,SG55,trafimet serise cutting torch and part.

Rating	180ACO2
	150A Mixed Gases m21
Duty Cycle	0.6
wire Size	0.6~1.0mm

Type	3.00m long Part	4.00m long Part	5.00m long Part
QS15 AK	N0.002.0596	N0.002.0597	N0.002.0598

Pos.	Part No.	Description
1	QS002.0009	Swan neck
2	QS002.0044	Torch body,plastic
3	QS001.0009	Hexagon nut M10x1
4	QS175.0022	Trigger wire connector
5	QS	Red Handle
	QS	Yellow Handle
	QS	Gray Handle
	QS	Black Handle
	QS	White Handle
6	QS	Ball Joint
8	QS160.0065	Power cable 3.00m
	QS160.0078	Power cable 4.00m
	QS160.0091	Power cable 5.00m
9.1	QS	Trigger
9.2	QS	Trigger
10	QS175.0004	Trigger wire connector male
11	QSEA0342	Spring
12.1	QS	Back Box
12.2	QS	Rear Box Closing Ring
12.3	QSBW0195	Handle
13	QS175.0003	Trigger wire connector,female
14	QSEA0018	Screw
15.1	QS	Rear Box Nut
15.2	QS	Rear Box Nut

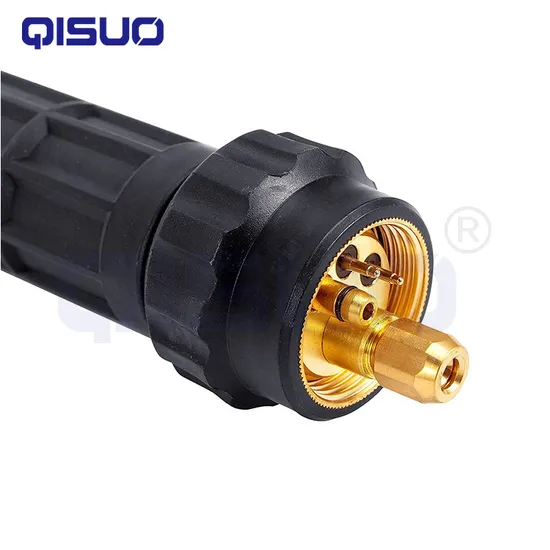

16	QS501.0003	Central adaptor block with contrl leads
90	QS140.0008	Contact tip M6 E-Cu,φ0.6
	QS140.0059	Contact tip M6 E-Cu,φ0.8
	QS140.0253	Contact tip M6E-Cu,φ1.0
	QS140.0855	Contact tip M6 CuCrZr,φ0.6
	QS140.0062	Contact tip M6 CuCrZr,φ0.8
	QS140.0256	Contact tip M6 CuCrZr,φ1.0
	QS141.0002	Contact tip M6 E-Cu,φ0.8for alu wire
	QS141.0007	Contact tip M6 E-Cu,φ1.0for alu wire
100	QS145.0041	Gas nozzle, cylindrical NDφ16.0
101	QS145.0075	Gas nozzle, conical NDφ12.0
102	QS145.0123	Gas nozzle, conical NDφ9.5
120	QS124.0011 QS124.0012 QS124.0015 QS124.0026 QS124.0031 QS124.0035 QS126.0005 QS126.0008 QS126.0011 QS126.0021 QS126.0026 QS126.0028	Guide spiral liner blank 1.5/4.5 blue with nipple for wireφ0.6-0.8 for 3.00m for 4.00m for 5.00m Guide spiral liner blank 2.0/4.5 red with nipple for wireφ1.0-1.2 for 3.00m for 4.00m for 5.00m PTFE core liner 1.5/4.0;blue;wire electrodφ0.6-1.0 for 3.00m for 4.00m for 5.00m PTFE core liner 2.0/4.0;red;wire electrodφ1.0-1.2 for 3.00m for 4.00m for 5.00m

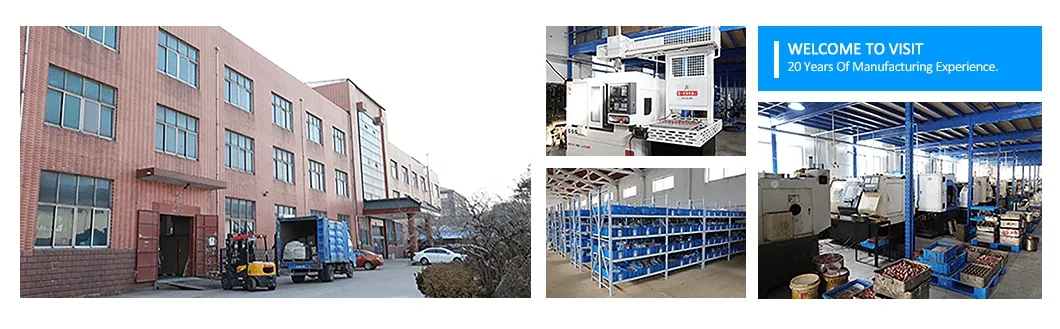

Changzhou Qi Suo Welding Equipment Co., Ltd. is a modern enterpriseintegratingdevelopment, production and sales. Founded in 2012. The company hasstrong technicaforce, strong production capacity, complete testing equipment,specializing in the productionof plasma cutting gun, MlG & TlG welding gun, andvarious welding accessories.
Advancedtechnology and excellent performance. With perfect quality system and excellent after-sales service, the company constantlydevelops the domestic market.
We have exported more than 100countries like USA.Mexico.
Canada,Spain,Russia,Singapore, Thailand, India etc.
Whether selecting RTS products from our catalog or seeking engineering assistanceforyour application, you can discuss your purchasing needs with our customer ServiceCenterand we will provide you with the most professional service.

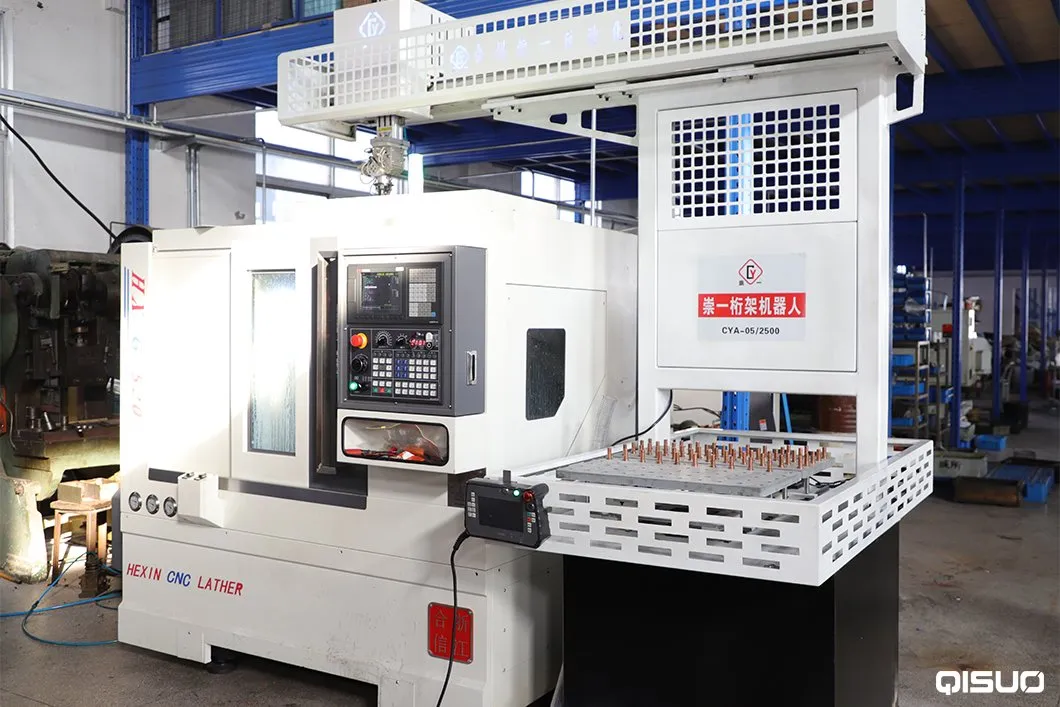

ADVANCED CNC EQUIPMENT
Our company has a large number of advanced CNC equipment. What is shown in the picture is the fully automatic truss robot, which can realize the automatic feeding and taking of materials with high efficiency and stable quality.

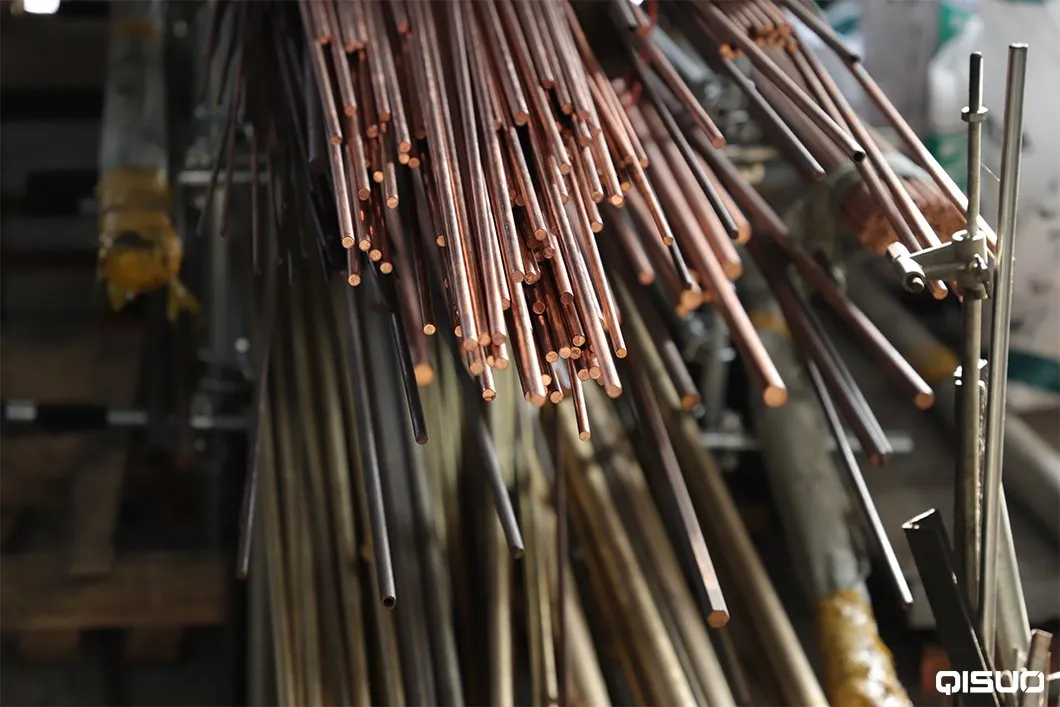

LARGE INVENTORY OF COPPER MATERIALS
Our company has a large amount of copper material inventory, to prepare for your order, to ensure that you can ship quickly.

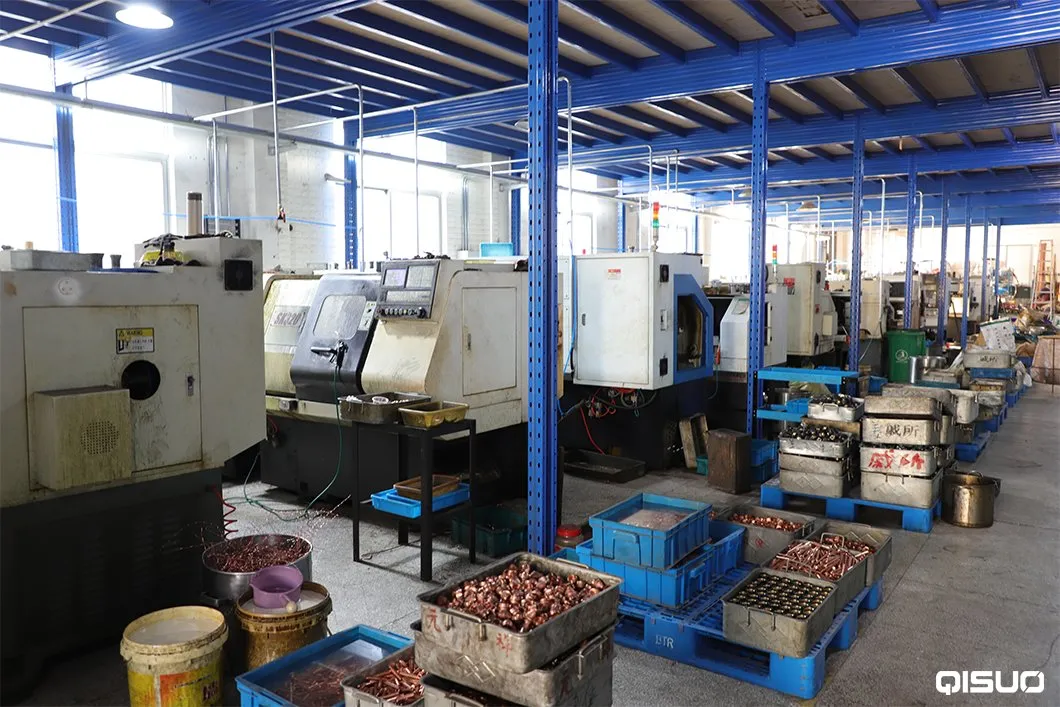

MULTIPLE CNC MACHINES GUARANTEE ORDER QUANTITY
Our company also has many CNC simultaneous operations that can produce large volume orders. Skilled operators and technical personnel as a guarantee.

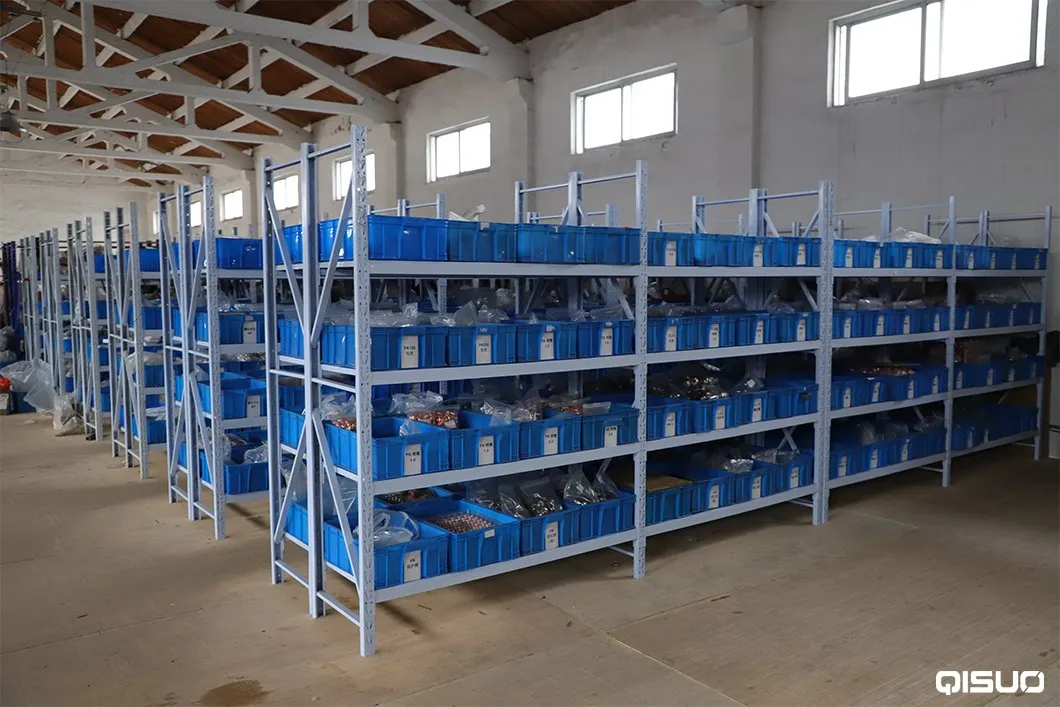

HAVE A LARGE STOCK OF SOME CONVENTIONAL PARTS
This is one of the warehouses of our company. We have a large stock of some conventional parts, such as P80, A141 and so on. You are welcome to visit. 15ak MIG Mag Welding Torch Gun with Europe Connector

Q:CAN I HAVE A SAMPLE FOR TESTING?
A:Yes, we can support sample, The sample will be charged reasonably according tothenegotiation between us.

Q:CAN IADD MY LOGO ON THE BOXES/CARTONS?
A:Yes, OEM and ODM are available from us.

Q:CAN ISEND SAMPLES AND HAVE THEM CUSTOMIZED?
A:Of course, we can make the parts you need according to the sample 1:1 reduction.

Q:DO YOU SELL ANY ORIGINAL PARTS?
A:Yes, welcome to inquire, we will sell some original parts, but also sell non-originalparts.The price of non-original packaging is relatively low.

Q:CAN I HAVE A VISIT TO YOUR FACTORY BEFORE THE ORDER?
A:Sure, welcome your visit to our factory.
