We are Manufacturing plasma consumables and export more than twenty countries. our price and quality have competitivity.
Please send us the parts you need and we will send price back to you .
PMX45,PMX1250,PMX1650,PMX45/65/85/105/PMX125/PRO200,HSD130 ,Thermal dynamic
Trafimet : S45, S75, S105, S125, A81, A101, A141, A151, CB50 , CB70, CB150,LT151, LT81, CP160
ESAB : Spare Parts ,Gas Cutting Nozzle ,PT80 ,PT36 ,PT31
AJAN,Lincoln ,LC125,LC105, HC-1003 , YY160
YGX300, YGX100,YGX200
YK300,YK330,YK200H,YK100H,YK130
Kjellberg,P80,AG60,PT31,AG100 ,SG51,JG60,JG100,SG55,trafimet serise cutting torch and part.

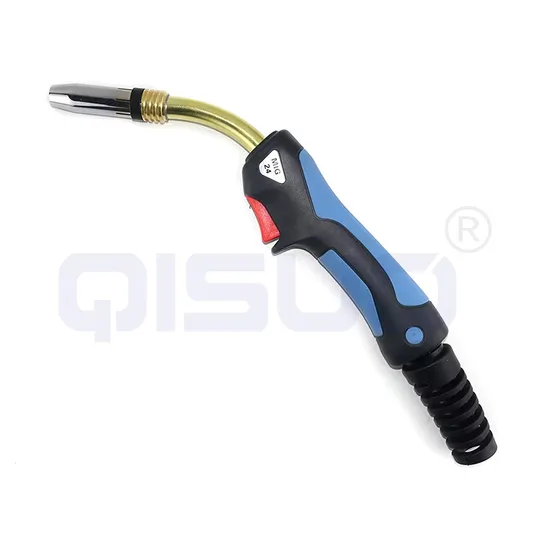

| Rating | 250A CO2 |
| | 220A Mixed Gases m21 |
| Duty Cycle | 0.35 |
| wire Size | 0.8~1.2mm |

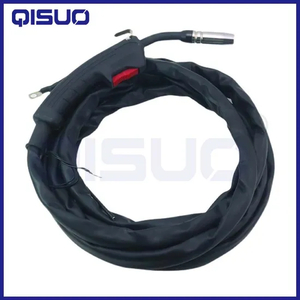

| Type | 3.00m long Part | 4.00m long Part | 5.00m long Part |
| QS 24 KD | NO.012.0103 | NO.012.0104 | N0.012.0105 |

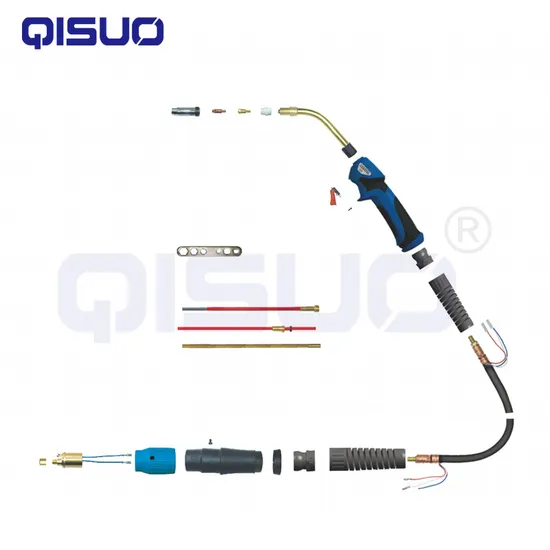

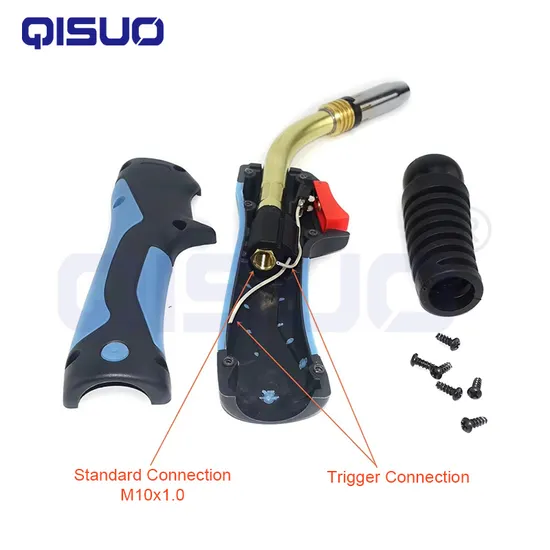

| Pos. | Part No. | Description |
| 1 | QS012.0001 | Swan neck |
| 2 | QS400.0044 | Torch body,plastic |
| 3 | QS001.0009 | Hexagon nut M10x1 |
| 4 | QS175.0022 | Trigger wire connector |
| 5 | QS | Red Handle |
| | QS | Yellow Handle |
| | QS | Gray Handle |
| | QS | Black Handle |
| | QS | White Handle |
| 6.1 | QS | Ball Joint |
| 6.2 | QS | Rubber Spring |
| 6.3 | QS | Ball Joint |
| 8 | QS160.0239 | Power cable 3.00m |
| | QS160.0255 | Power cable 4.00m |
| | QS160.0267 | Power cable 5.00m |
| 9.1 | QS | Trigger |
| 9.2 | QS | Trigger |
| 10 | QS175.0004 | Trigger wire connector male |
| 11 | QSEA0342 | Spring |
| 12.1 | QS | Back Box |
| 12.2 | QS | Rear Box Closing Ring |
| 12.3 | QSBW0195 | Handle |
| 13 | QS175.0003 | Trigger wire connector,female |
| 14 | QSEA0018 | Screw |
| 15.1 | QS | Rear Box Nut |
| 15.2 | QSBW0020 | Rear Box Nut |
| 16 | QS501.0003 | Central adaptor block with contrl leads |

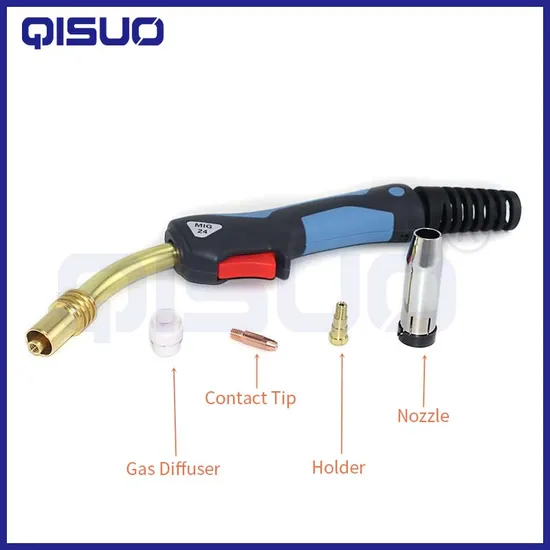

| 70 | QS012.0183 | Gas diffusor, white |
| | QS012.0017 | Gas diffusor, black |
| | QS012.0017-A | Gas diffusor,black.long life |
| 80 | QS142.0003 | Contact tip holder M6:26.0mm |
| 90 | QS140.0051 | Contact tip M6 E-Cu,φ0.8 |
| | QS140.0242 | Contact tip M6 E-Cu,φ1.0 |
| | QS140.0379 | Contact tip M6 E-Cu,φ1.2 |
| | QS140.0054 | Contact tip M6 CuCrZr,φ0.8 |
| | QS140.0245 | Contact tip M6 CuCrZr,φ1.0 |
| | QS140.0382 | Contact tip M6 CuCrZr,φ1.2 |
| | QS141.0001 | Contact tip M6 E-Cu. φ0.8 for alu wire |
| | QS141.0006 | Contact tip M6 E-Cu,φ 1.0 for alu wire |
| | QS141.0010 | Contact tip M6 E-Cu,φ1.2 for alu wire |
| 100 | QS145.0047 | Gas nozzle, cylindrical ND φ17.0 |
| 101 | QS145.0080 | Gas nozzle, conical ND φ12.5 |
| 102 | QS145.0128 | Gas nozzle, tapered ND φ10.0 |
| 120 | QS124.0011 | Guide spiral liner blank 1.5/4.5 blue with nipple for wireφ0.6-0.8 |
| | QS124.0012 | for 3.00m |
| | QS124.0015 | for 4.00m |
| | | for 5.00m |
| | QS124.0026 | Guide spiral liner blank 2.0/4.5 red with nipple for wireφ1.0-1.2 |
| | QS124.0031 | for 3.00m |
| | QS124.0035 | for 4.00m |
| | QS126.0005 | for 5.00m |
| | QS126.0008 | PTFE core liner 1.5/4.0;blue;wire electrod φ 0.6-0.8 |
| | QS126.0011 | for 3.00m |
| | QS126.0021 | for 4.00m |
| | QS126.0026 | for 5.00m |
| | QS126.0028 | PTFE core liner 2.0/4.0;red;wire electrod φ 1.0-1.2 |
| | | for 3.00m |
| | | for 4.00m |
| | | for 5.00m |
Changzhou Qi Suo Welding Equipment Co., Ltd. is a modern enterpriseintegratingdevelopment, production and sales. Founded in 2012. The company hasstrong technicaforce, strong production capacity, complete testing equipment,specializing in the productionof plasma cutting gun, MlG & TlG welding gun, andvarious welding accessories.
Advancedtechnology and excellent performance. With perfect quality system and excellent after-sales service, the company constantlydevelops the domestic market.
We have exported more than 100countries like USA.Mexico.
Canada,Spain,Russia,Singapore, Thailand, India etc.
Whether selecting RTS products from our catalog or seeking engineering assistanceforyour application, you can discuss your purchasing needs with our customer ServiceCenterand we will provide you with the most professional service.

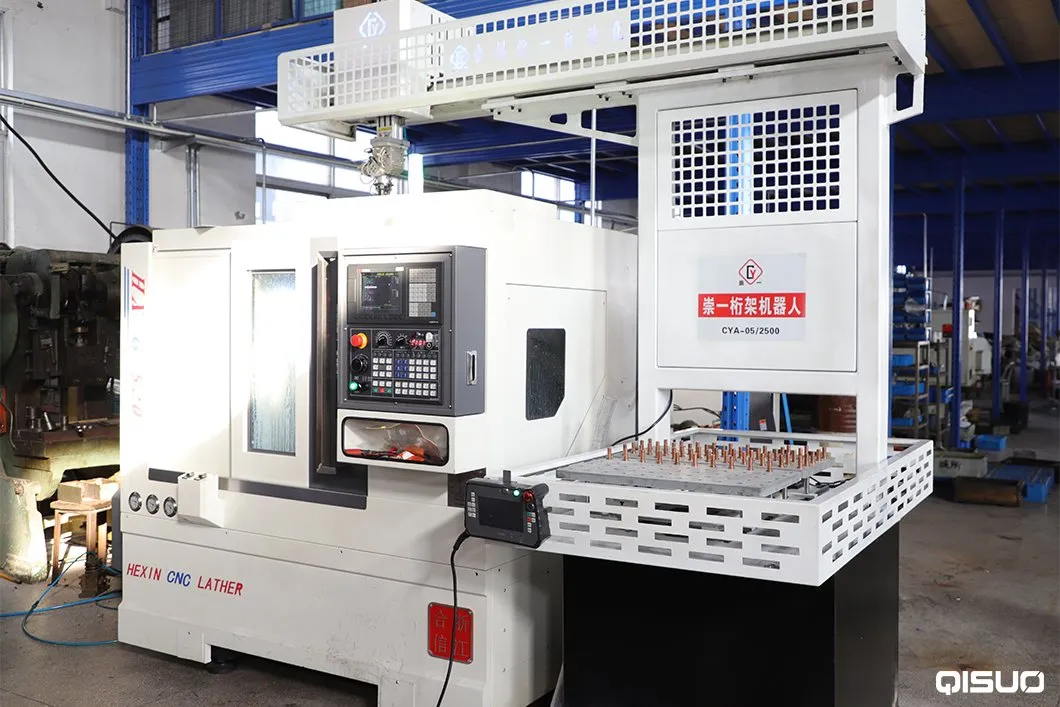

ADVANCED CNC EQUIPMENT Our company has a large number of advanced CNC equipment. What is shown in the picture is the fully automatic truss robot, which can realize the automatic feeding and taking of materials with high efficiency and stable quality.

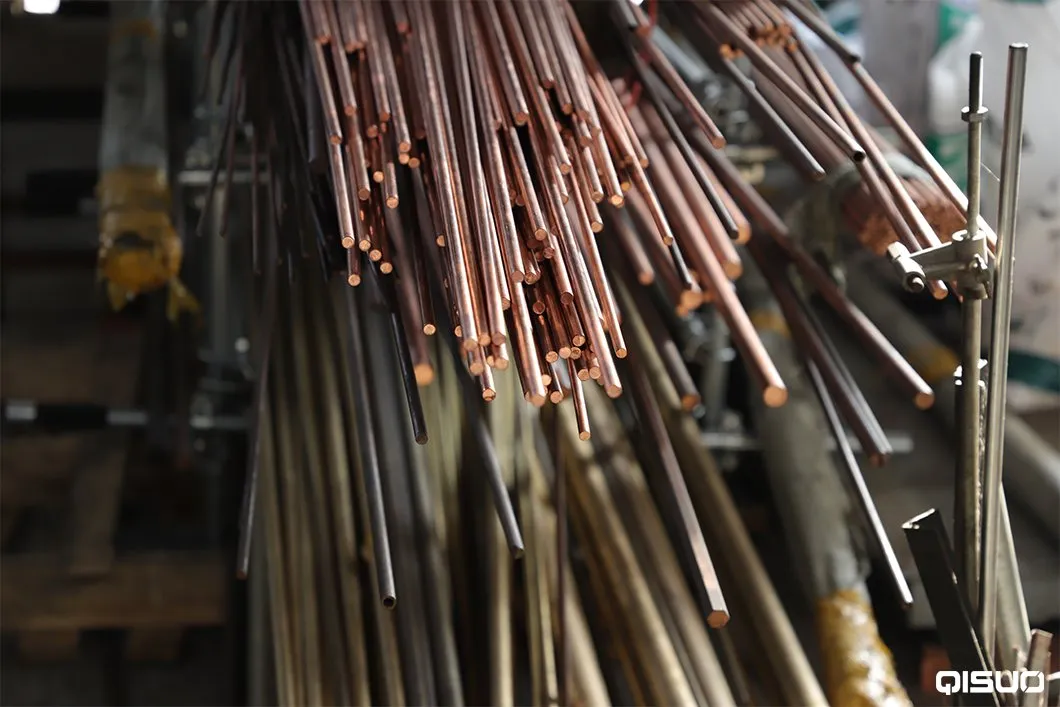

LARGE INVENTORY OF COPPER MATERIALS Our company has a large amount of copper material inventory, to prepare for your order, to ensure that you can ship quickly.

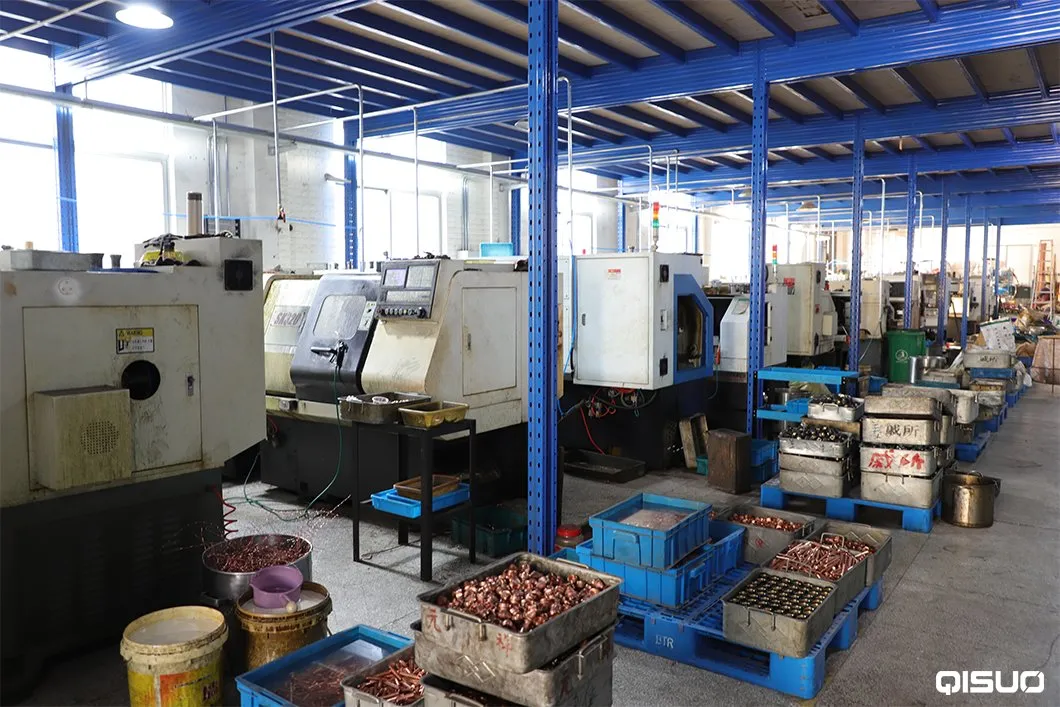

MULTIPLE CNC MACHINES GUARANTEE ORDER QUANTITY Our company also has many CNC simultaneous operations that can produce large volume orders. Skilled operators and technical personnel as a guarantee.

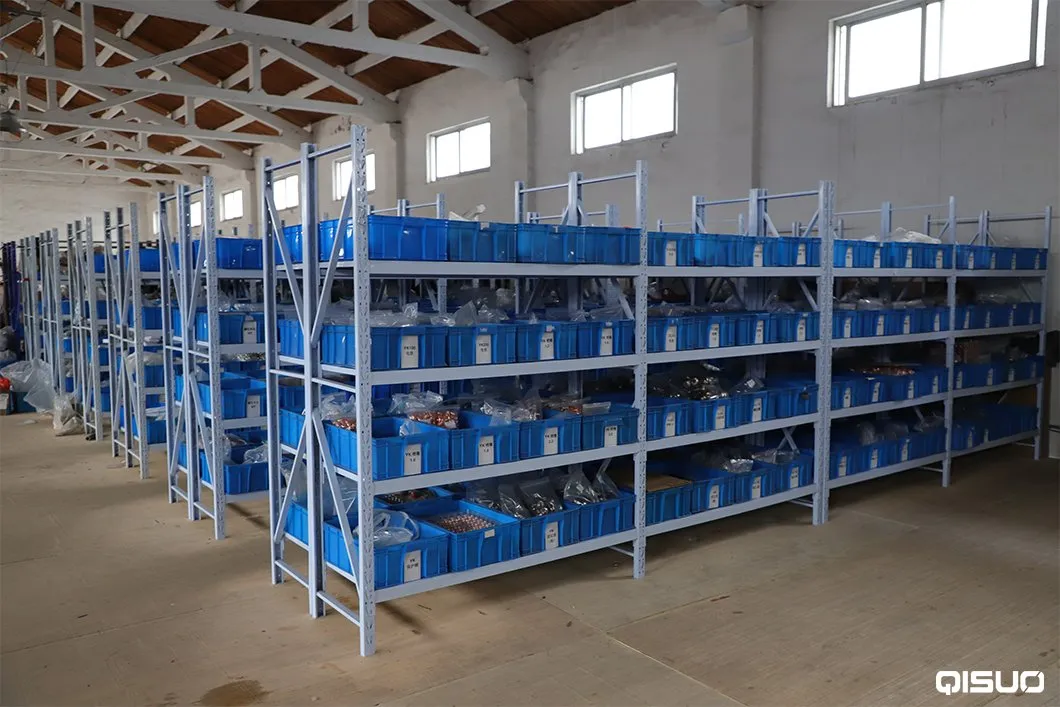

HAVE A LARGE STOCK OF SOME CONVENTIONAL PARTS This is one of the warehouses of our company. We have a large stock of some conventional parts, such as P80, A141 and so on. You are welcome to visit.
Q:CAN I HAVE A SAMPLE FOR TESTING?
A:Yes, we can support sample, The sample will be charged reasonably according tothenegotiation between us.
Q:CAN IADD MY LOGO ON THE BOXES/CARTONS?
A:Yes, OEM and ODM are available from us.
Q:CAN ISEND SAMPLES AND HAVE THEM CUSTOMIZED?
A:Of course, we can make the parts you need according to the sample 1:1 reduction.
Q:DO YOU SELL ANY ORIGINAL PARTS?
A:Yes, welcome to inquire, we will sell some original parts, but also sell non-originalparts.The price of non-original packaging is relatively low.
Q:CAN I HAVE A VISIT TO YOUR FACTORY BEFORE THE ORDER?
A:Sure, welcome your visit to our factory.
