We are Manufacturing plasma consumables and export more than twenty countries. our price and quality have competitivity.
| Technical | Data | ||
| Current | 150 Amp | ||
| Duty Cycle | 60% | ||
| Gas | AIR | ||
| Gas Pressure | 4.5-5.0 Bar | ||
| Gas Flow | 220LP | ||
| Ignition | MHF | ||
| Post Flow | 150 sec.recommended | ||
| Standard Length | 6M |
| Ref Code(6m) | Ref Code(12m) | Description | |
| QS PA1370 | QS PA1380 | Plasma cutting torch CB150 1/8G | |
| QS PA1371 | QS PA1381 | Plasma cutting torch CB150 1/4G | |
| QS PA1372 | QS PA1382 | Plasma cutting torch CB150 central adaptor | |
| QS PA1373 | QS PA1383 | Plasma cutting torch CB150 M16x1.5 | |
| QS PA1374 | QS PA1384 | Plasma cutting torch CB150 M14x1 | |
| Ref Code(6m) | Ref Code(12m) | Description | |
| QS PA1286 | QS PA1336 | Plasma cutting auto torch CB150 M16x1.5 | |
| QS PA1285 | QS PA1335 | Plasma cutting auto torch CB150 central adaptor | |
| QS PA1282 | QS PA1332 | Plasma cutting auto torch CB150 1/4G | |
| QS PA1283 | QS PA1333 | Plasma cutting auto torch CB150 M14x1 | |
| QS PA1284 | QS PA1334 | Plasma cutting auto torch CB150 1/8G | |
| Position | Ref Code | Description | |
| 1 | QS CV0013 | Gouging spacer/CB100-150 | |
| 2 | QS CV0014 | Four pointed spacer/CB100-150 | |
| 3 | QS CV0012 | Double pointed spacer/CB100-150 | |
| 4 | QS CV0011 | Spacer spring/CB100-150 | |
| 5 | QS PC0002 | Outsid nozzie CB150 | |
| 6 | Tip | ||
| 6.1 | QS PD0026-11 | Tip φ 1.1mm CB100-150 | |
| 6.2 | QS PD0026-13 | Tip φ 1.35mm CB100-150 | |
| 6.3 | QS PD0026-16 | Tipφ 1.6mm CB100-150 | |
| 6.4 | QS PD0026-18 | Tip φ 1.8mmCB100-150 | |
| 7 | QS CV0044 | Locking nut | |
| 8 | QS CV0038 | Spacer for contact cutting/CB100-150 | |
| 9 | QS PC0034 | Contanct cutting nozzie CB150 | |
| 10 | Tip | ||
| 10.1 | QS PD0028-14 | Tipφ1.35mm CB100-150 | |
| 10.2 | QS PD0028-16 | Tip φ1.6mm CB100-150 | |
| 10.3 | QS PD0028-18 | Tipφ1.8mm CB100-150 | |

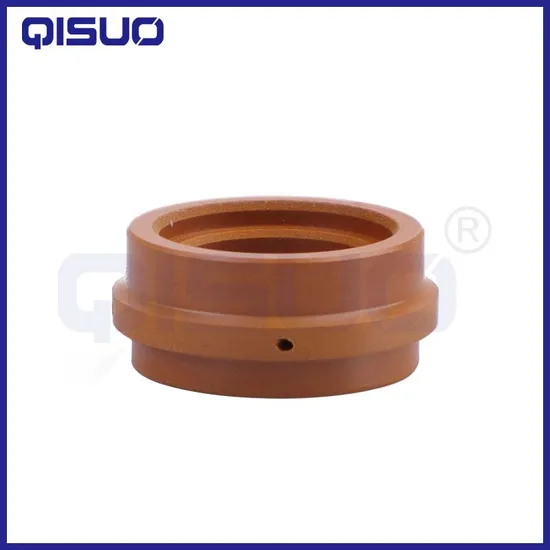

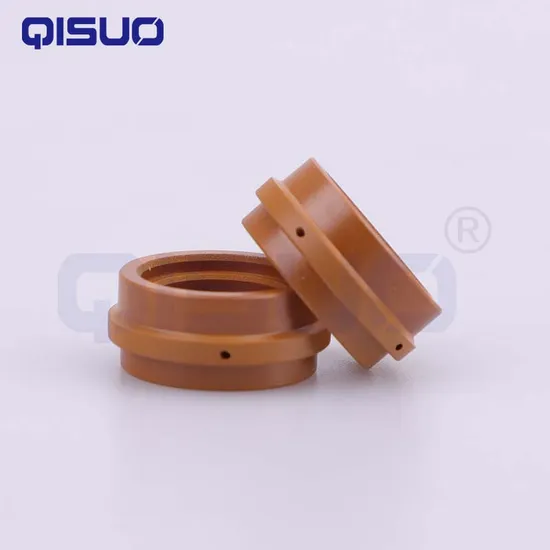

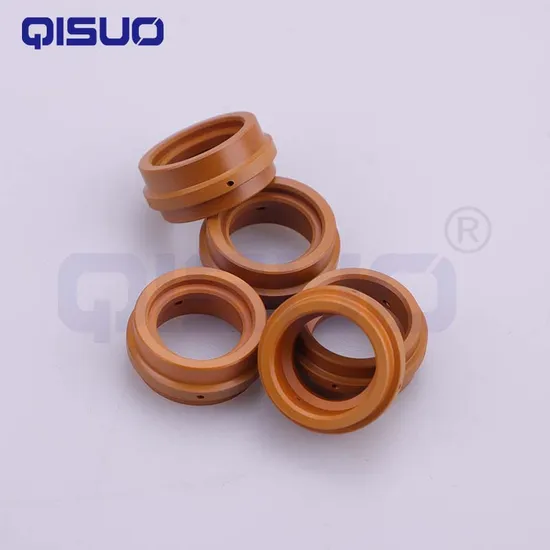

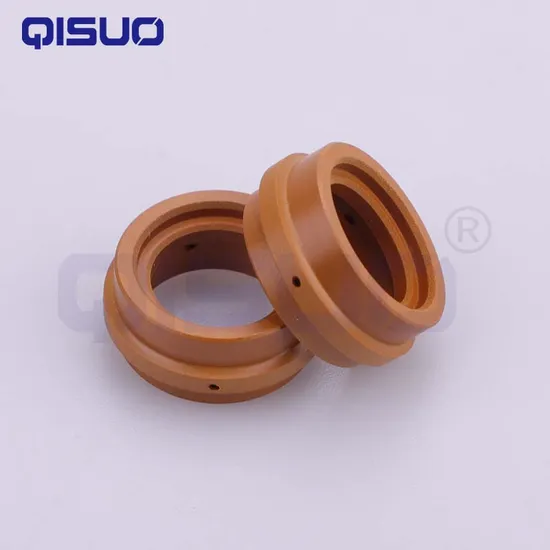

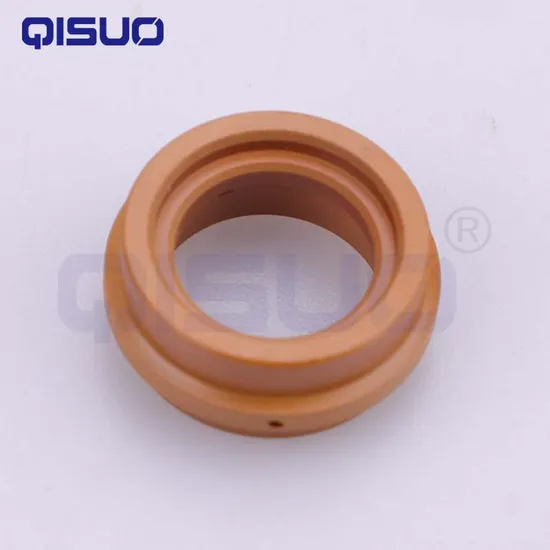

| 11 | QS PE0009 | Diffuser CB100-150 | |
| 12 | QS PR0034 | Extended HF Plasma CB100-150 | |
| 13 | Air tube CB150 | ||
| 14 | QS CV0008 | Contanct cutting attachment/CB100-150 | |
| 15 | QS CV0009 | Long contact cutting attachment/CB100-150 | |
| 16 | Tip | ||
| 16.1 | QS PD0025-14 | Extended tip φ 1.4mm/CB100-150 | |
| 16.2 | QS PD0025-16 | Extended tip φ 1.6mm/CB100-150 | |
| 16.3 | QS PD0025-18 | Extended tip φ 1.8mm/CB100-150 | |
| 16.4 | QS PD0030-11 | Contanct Extended tip 50A/CB100-150 | |
| 17 | QS PR0045 | Extended electrode HF Plasma CB100-150 | |
| 18 | Extended air tube/CB150 | ||
| 19 | QS PF0080 | Plasma torch head CB150 | |
| 19a | QS ECB0134 | Oring CB150 | |
| 19b | QS PE4002 | Front insulator/CB150 | |

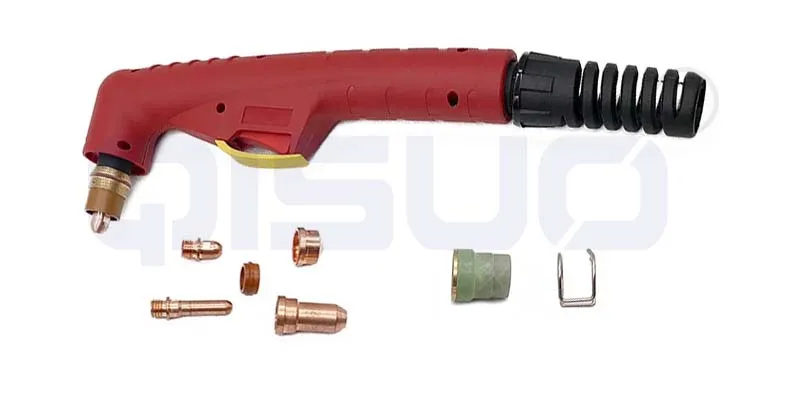

| 20 | QS TP0085 | Plasma handle manual/A Series/Red | |
| 21 | GN BW0277 | Protection part/Plasma/Yellow | |
| 22 | QS BX0020 | Trigger | |
| 23 | QS BW0349 | Plasma joint/big/new type | |
| 24 | Cable assembly | ||
| 24.1 | QS PH0140 | Cable assembly/CB100-150/6m 1/8G | |
| 24.2 | QS PH0146 | Cable assembly/CB100-150/6m 1/4G | |
| 24.3 | QS PH0142 | Cable assembly/CB100-150/6m M14x1 | |
| 24.4 | QS PH0150 | Cable assembly/CB100-150/6m M16x1.5 | |
| 24.5 | QS PH0144 | Cable assembly/CB100-150/6m central adaptor | |
| 25 | QS MT1001 | Spanner for Plasma | |
| 26 | QS PF0034 | Plasma torch head CBM150 | |
| 26a | QS TP0061 | Fiber glass position tube/CBM | |
| 27 | Cable assembly CBM | ||
| 27.1 | QS PH0122 | Cable assembly CB100-150/6m 1/8G | |
| 27.2 | QS FCB5132 | Connecting adaptor 1/8G-1/4G | |
| 27.3 | QS FCB5133 | Connecting adaptor 1/8G-M14x1 | |
| 27.4 | QS FCB5134 | Connecting adaptor 1/8G-M16x1.5 | |
| 28 | QS FY0233 | Central adaptor torch side Plasma 5 pins | |
| 29 | Circle cutting attachment/CB100-150 | ||
Changzhou Qi Suo Welding Equipment Co., Ltd. is a modern enterpriseintegratingdevelopment, production and sales. Founded in 2012. The company hasstrong technicaforce, strong production capacity, complete testing equipment,specializing in the productionof plasma cutting gun, MlG & TlG welding gun, andvarious welding accessories.

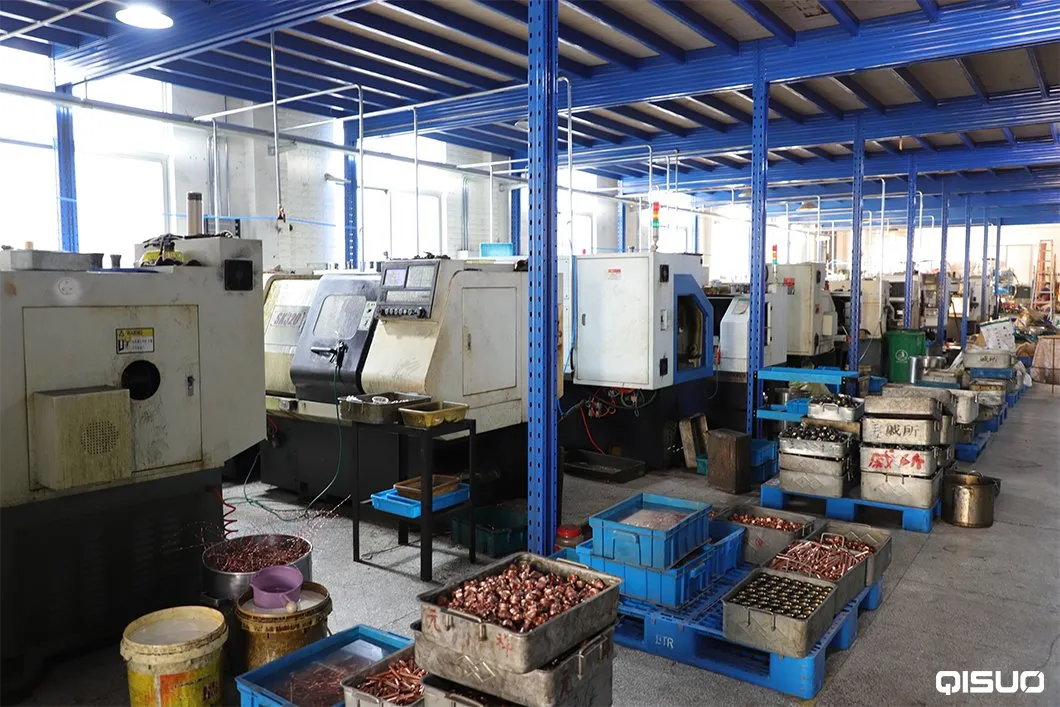

ADVANCED CNC EQUIPMENT

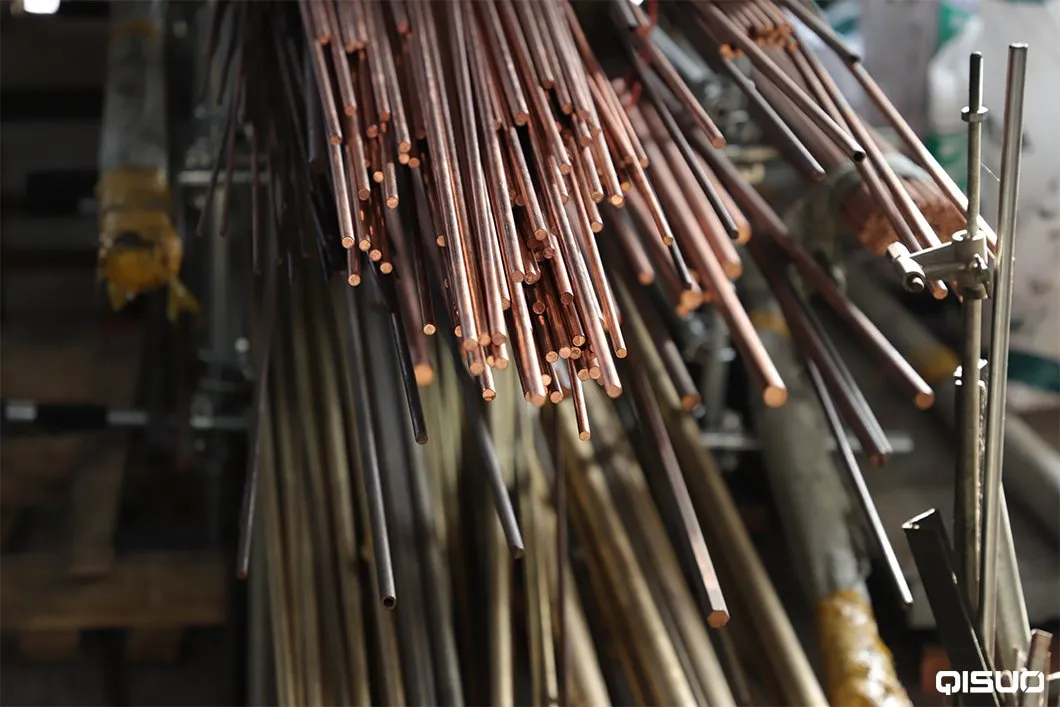

LARGE INVENTORY OF COPPER MATERIALS
MULTIPLE CNC MACHINES GUARANTEE ORDER QUANTITY

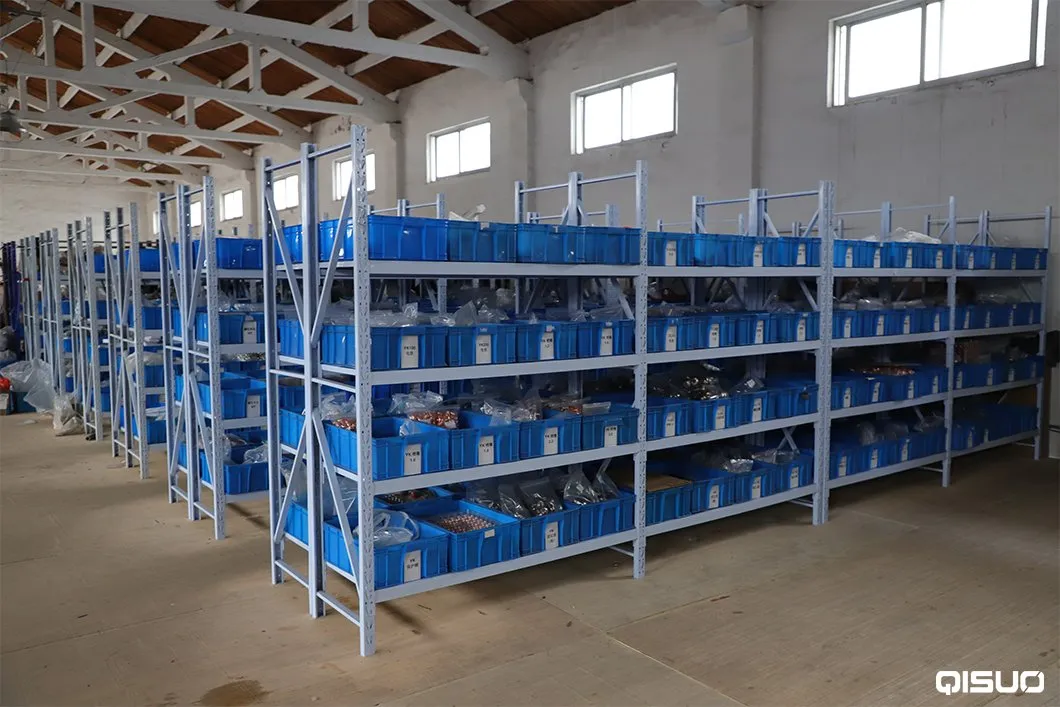

HAVE A LARGE STOCK OF SOME CONVENTIONAL PARTS
