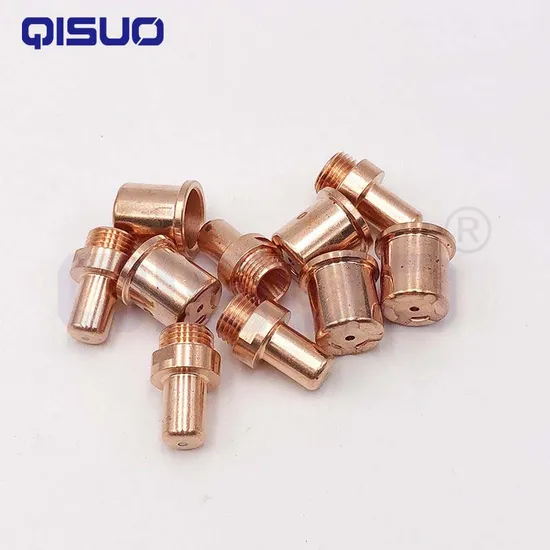

Trafimet CB70 Torch Parts Nozzle Tips Pd0088 1.0mm 1.1mm 1.2mm

Customization:	Available
Material:	Copper
Transport Package:	Carton

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

CB70 N+E

Specification

13*8*9

Trademark

CB70 N+E

Origin

China

HS Code

8468900000

Production Capacity

50000

Packaging & Delivery

Package Size

13.00cm * 8.00cm * 9.00cm

Package Gross Weight

2.000kg

Product Description

We are Manufacturing plasma consumables and export more than twenty countries. our price and quality have competitivity.
Please send us the parts you need and we will send price back to you .
PMX45,PMX1250,PMX1650,PMX45/65/85/105/PMX125/PRO200,HSD130 ,Thermal dynamic
Trafimet : S45, S75, S105, S125, A81, A101, A141, A151, CB50 , CB70, CB150,LT151, LT81, CP160
ESAB : Spare Parts ,Gas Cutting Nozzle ,PT80 ,PT36 ,PT31
AJAN,Lincoln ,LC125,LC105, HC-1003 , YY160
YGX300, YGX100,YGX200
YK300,YK330,YK200H,YK100H,YK130
Kjellberg,P80,AG60,PT31,AG100 ,SG51,JG60,JG100,SG55,trafimet serise cutting torch and part Trafimet CB70 Torch Parts Nozzle Tips Pd0088 1.0mm 1.1mm 1.2mm

Technical		Data
Current		50 Amp
Duty Cycle		60%
Gas		AIR
Gas Pressure		4.5-5.0 Bar
Gas Flow		120LPM
Ignition		HF
Post Flow		50 sec.recommended
Standard Length		6M

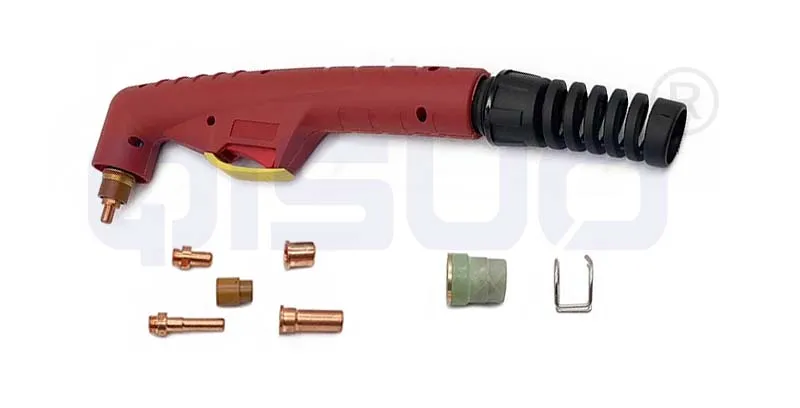

HAND TORCH

Ref Code		Description
QS PA1300		Plasma cutting torch CB50/6m 1/8G
QS PA1305		Plasma cutting torch CB50/6m 1/4G
QS PA1301		Plasma cutting torch CB50/6m M14x1
QS PA1304		Plasma cutting torch CB50/6m M16x1.5
QS PA1302		Plasma cutting torch CB50/6m central adaptor

Machine Torch

Ref Code		Description
QS PA1280		Plasma cutting auto torch CB50/6m 1/8G
QS PA1282		Plasma cutting auto torch CB50/6m 1/4G
QS PA1278		Plasma cutting auto torch CB50/6m M14x1
QS PA1279		Plasma cutting auto torch CB50/6m M16x1.5
QS PA1281		Plasma cutting auto torch CB50/6m central adaptor

Position	Ref Code	Description
1	QS CV0001	Shield cap for extended tiplCB50
1.1	QS CV0037	Plasma stand off guide 24.3mm-31mm

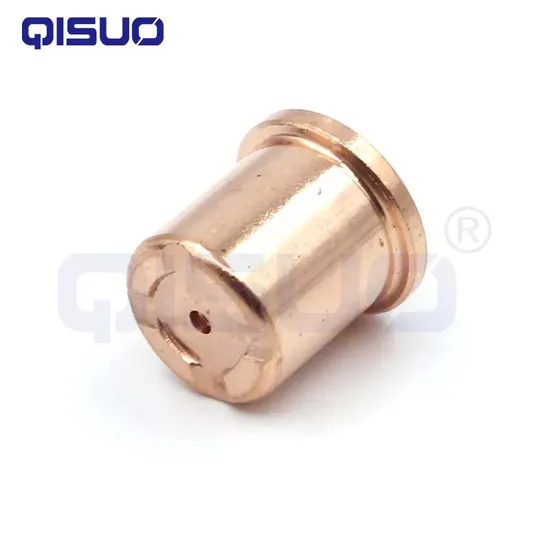

2	QS PC0003	Outsid nozzie
2.1		Outsid nozzie CB50
2.2		Outsid nozzie/maximum life CB50
3	QS PD0014-10	Extended conical tip 1.0mm/CB50
4		Extended tip
4.1	QS PD0063-10	Extended tip φ1.0mm/CB50
4.2	QS PD0063-10	Extended tip φ1.0mm/CB50-70
4.3	QS PD0063-11	Extended tip φ1.1mm/CB50-70
5	QS PD0019-10	Conical tip φ1.0mm/CB50-70

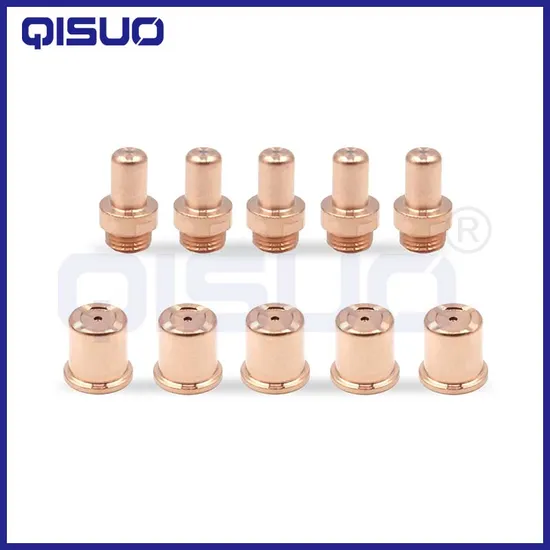

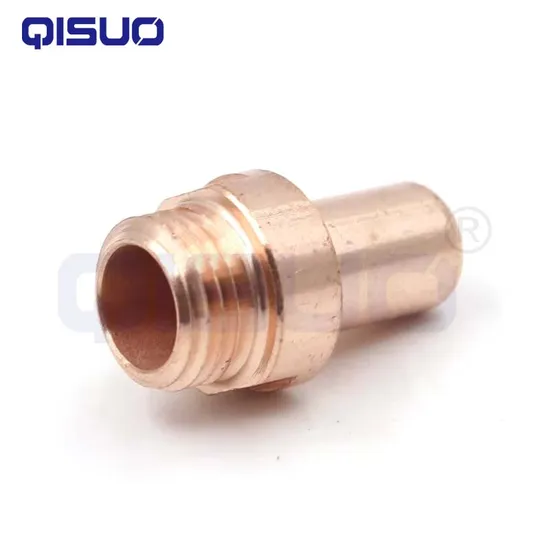

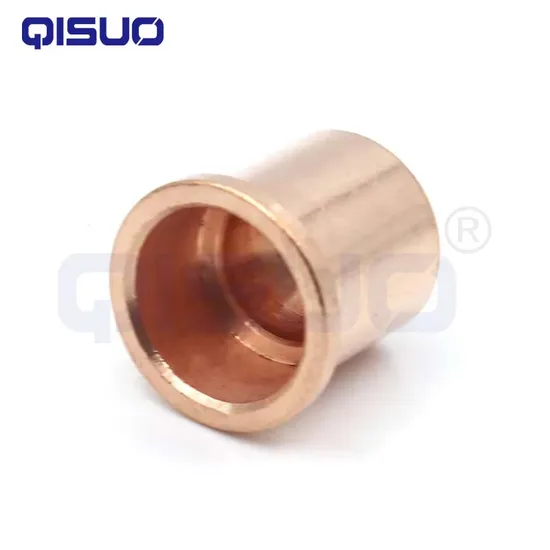

6		Tip
6.1	QS PD0088-10	Tip φ1.0mm/CB50-70
6.2	QS PD0088-11	Tip φ1.1mm/CB50-70
6.3	QS PD0088-12	Tip φ1.2mm/CB50-70
6.4	QS PD0088-10	Tip φ1.0mm/CB50-70
7	QS PE0007	Diffuser CB50-70

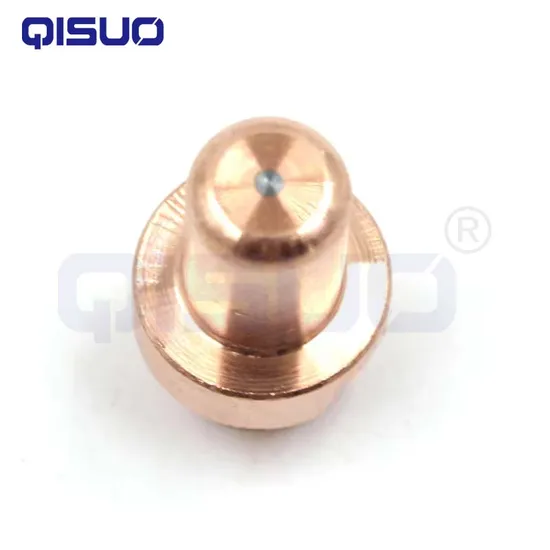

8	QS PR0065	Extended electrode HF Plasma CB50
9	QS PR0017	Extended HF Plasma CB50
10	QS PF0050	Plasma torch head CB50
10a	QS EA0202	"O"ring φ12.42x1.78mm in silicon red
11	QS TP0403	Plasma handle manual/CB50-70/Red
12	QS TP0400	Protection part/Plasma/Yellow
13	QS TP0400	Trigger
14	QS BW0348	Plasma joint/small/new type
15		Cable assembly
15.1	QS PH0172	Cable assembly CB50-70/6m 1/8G
15.2	QS PH0170	Cable assembly CB50-70/6m 1/4G
15.3	QS PH0175	Cable assembly CB50-70/6m M14x1
15.4	QS PH0176	Cable assembly CB50-70/6m M16x1.5
15.5	QS PH0173	Cable assembly CB50-70/6m central adaptor
16	QS MT1001	Spanner for Plasma
17	QS PF0035	Plasma torch head CBM50
17a	QS TP0061	Fiber glass position tube/CBM
18		Cable assembly CBM
18.1	QS PH0126	Cable assembly CBM50-70 6m 1/8G
18.2	QS FA5132	Connecting adaptor 1/8G-1/4G
18.3	QS FA5133	Connecting adaptor 1/8G-M14x1
18.4	QS FA5134	Connecting adaptor 1/8G-M16x1.5
19	QS FY0016	Central adaptor torch side Plasma 5 pins
20		Circle cutting attachment/CB50

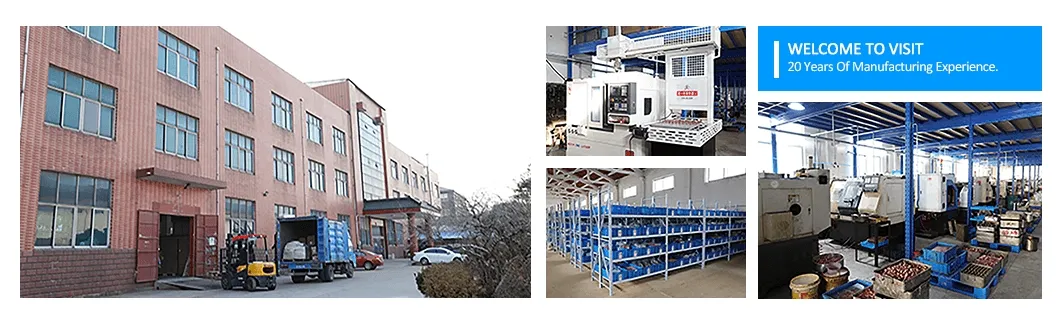

Changzhou Qi Suo Welding Equipment Co., Ltd. is a modern enterpriseintegratingdevelopment, production and sales. Founded in 2012. The company hasstrong technicaforce, strong production capacity, complete testing equipment,specializing in the productionof plasma cutting gun, MlG & TlG welding gun, andvarious welding accessories.
Advancedtechnology and excellent performance. With perfect quality system and excellent after-sales service, the company constantlydevelops the domestic market.
We have exported more than 100countries like USA.Mexico.
Canada,Spain,Russia,Singapore, Thailand, India etc.
Whether selecting RTS products from our catalog or seeking engineering assistanceforyour application, you can discuss your purchasing needs with our customer ServiceCenterand we will provide you with the most professional service.
Trafimet CB70 Torch Parts Nozzle Tips Pd0088 1.0mm 1.1mm 1.2mm

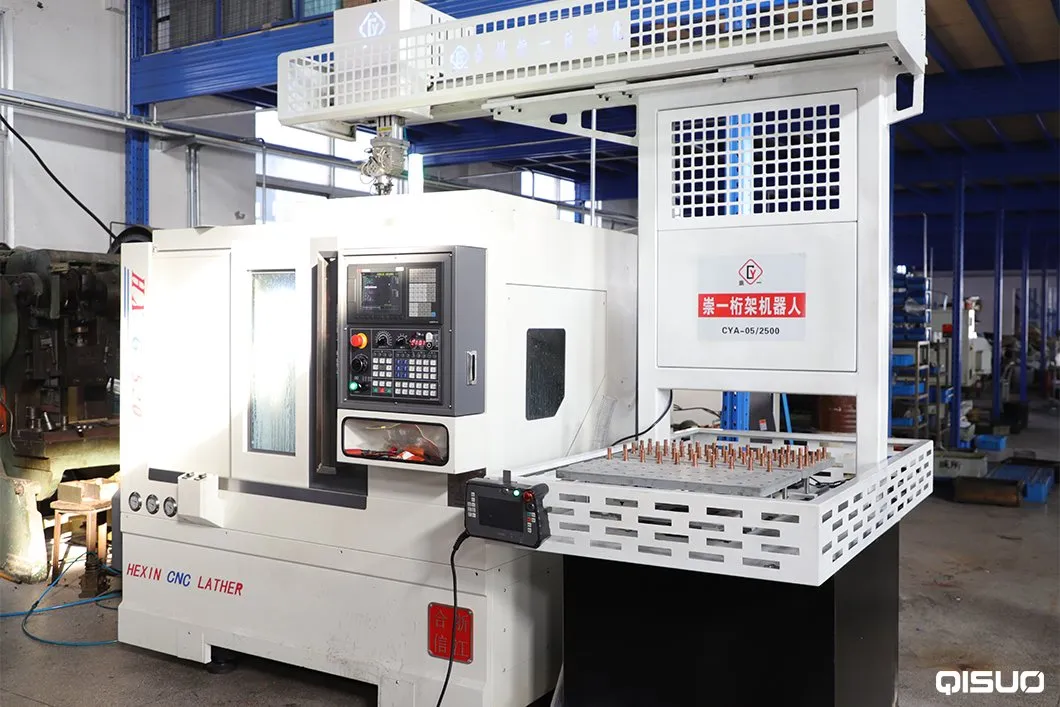

ADVANCED CNC EQUIPMENT
Our company has a large number of advanced CNC equipment. What is shown in the picture is the fully automatic truss robot, which can realize the automatic feeding and taking of materials with high efficiency and stable quality.
Trafimet CB70 Torch Parts Nozzle Tips Pd0088 1.0mm 1.1mm 1.2mm

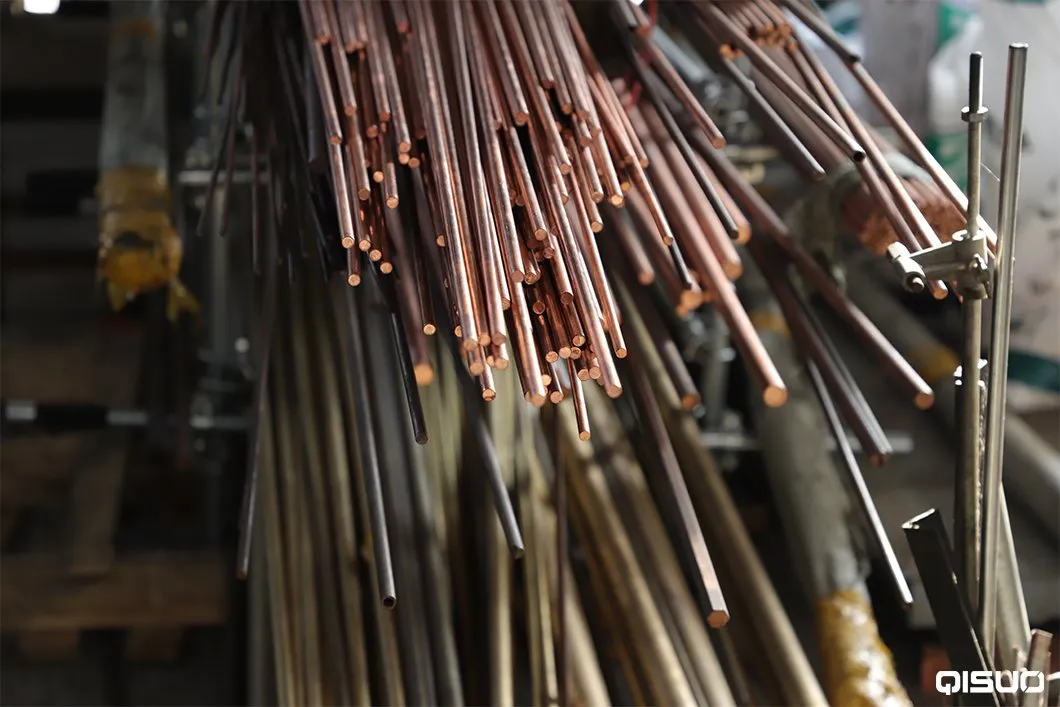

LARGE INVENTORY OF COPPER MATERIALS
Our company has a large amount of copper material inventory, to prepare for your order, to ensure that you can ship quickly.
Trafimet CB70 Torch Parts Nozzle Tips Pd0088 1.0mm 1.1mm 1.2mm

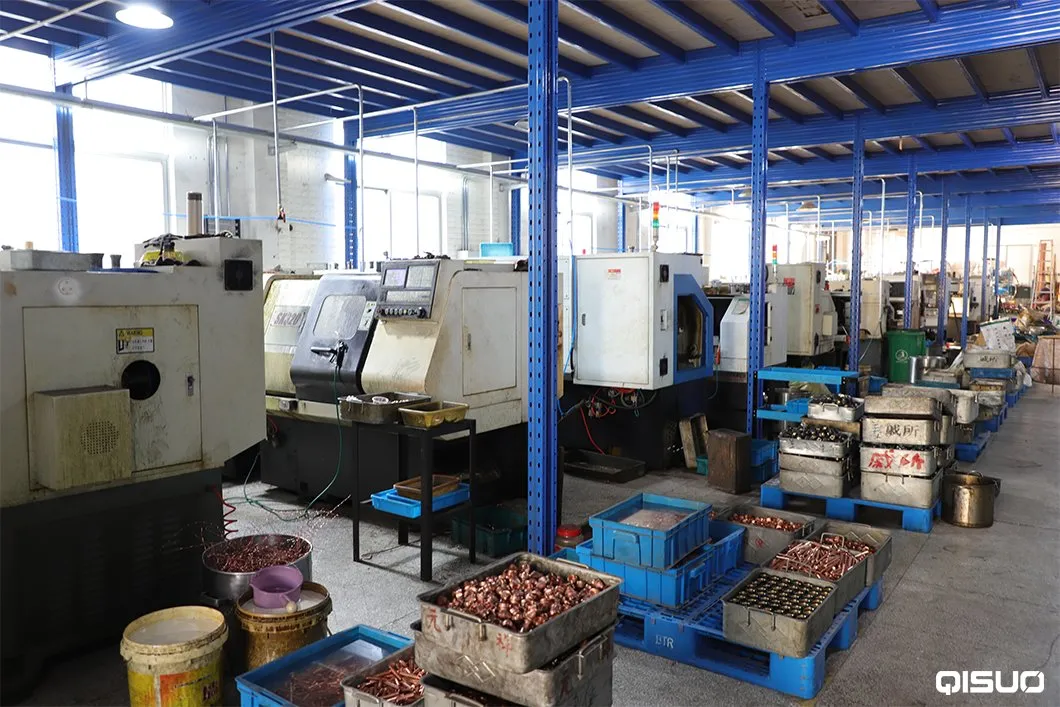

MULTIPLE CNC MACHINES GUARANTEE ORDER QUANTITY
Our company also has many CNC simultaneous operations that can produce large volume orders. Skilled operators and technical personnel as a guarantee.
Trafimet CB70 Torch Parts Nozzle Tips Pd0088 1.0mm 1.1mm 1.2mm

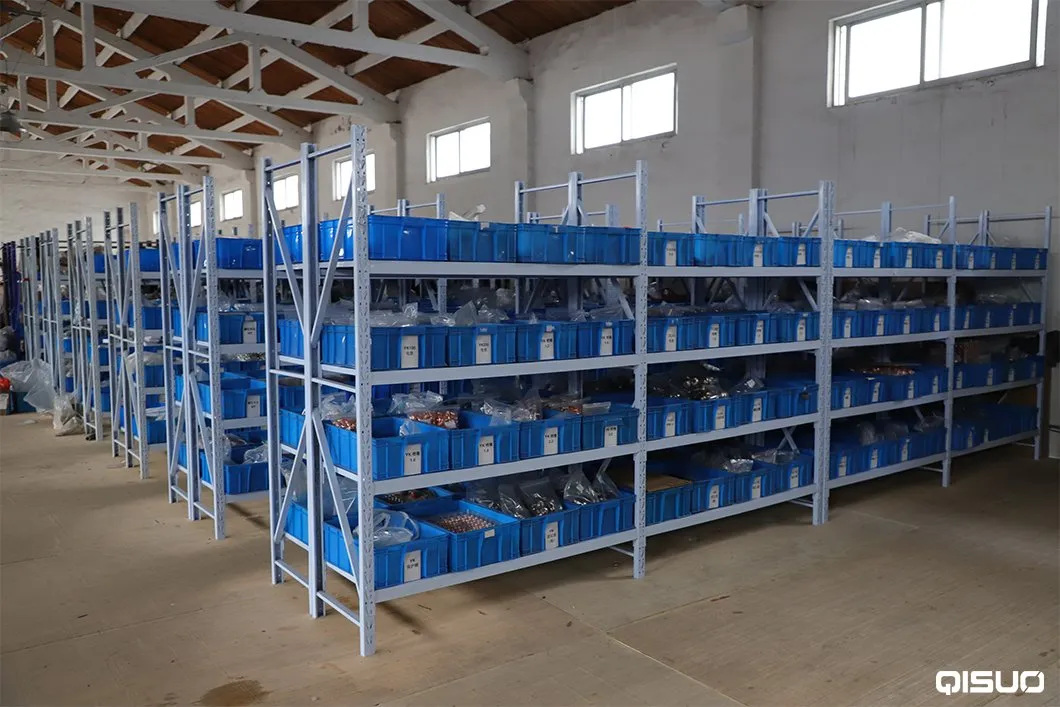

HAVE A LARGE STOCK OF SOME CONVENTIONAL PARTS
This is one of the warehouses of our company. We have a large stock of some conventional parts, such as P80, A141 and so on. You are welcome to visit. Trafimet CB70 Torch Parts Nozzle Tips Pd0088 1.0mm 1.1mm 1.2mm

Q:CAN I HAVE A SAMPLE FOR TESTING?
A: Yes, we can support sample, The sample will be charged reasonably according tothenegotiation between us.

Q:CAN IADD MY LOGO ON THE BOXES/CARTONS?
A: Yes, OEM and ODM are available from us.

Q:CAN ISEND SAMPLES AND HAVE THEM CUSTOMIZED?
A: Of course, we can make the parts you need according to the sample 1:1 reduction.

Q:DO YOU SELL ANY ORIGINAL PARTS?
A: Yes, welcome to inquire, we will sell some original parts, but also sell non-originalparts.The price of non-original packaging is relatively low.

Q:CAN I HAVE A VISIT TO YOUR FACTORY BEFORE THE ORDER?
A: Sure, welcome your visit to our factory.
